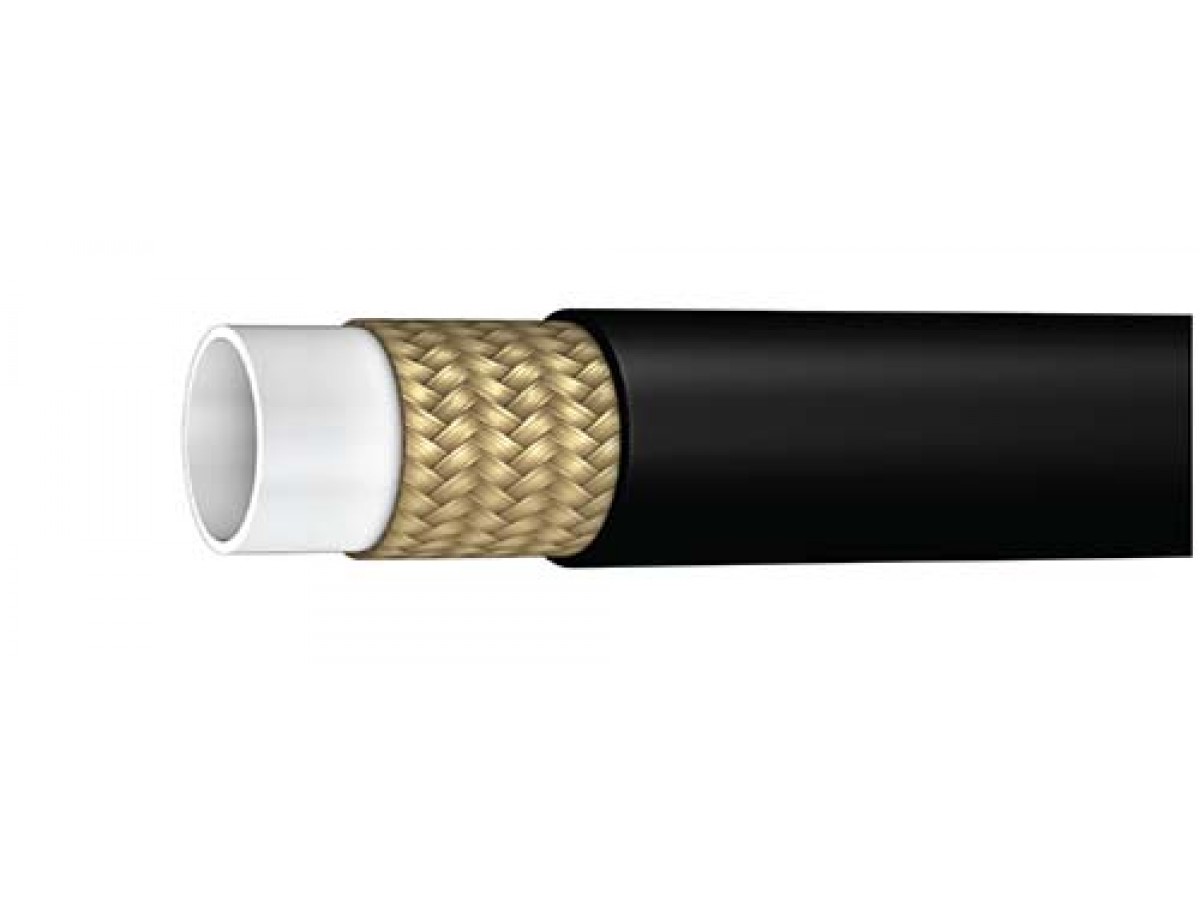

Construction :
Inner tube : Thermoplastic Elastomer
Reinforcement : Single Braid of Steel Wire
Cover : Polyurethane, Black Colour, Pin pricked (Optional)
Application : Medium Pressure Hydraulic Lines 100 to 350 bar. Suitable for hydraulic application with increased resistance to abrasion for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural machinery, Earthmoving, Articulating & Telescopic booms and Material handling equipment. Also suitable for industrial gases and other applications. Please consult manufacturer. Compact Construction compared to conventional single steel wire braid rubber hoses
| Item Code |
Dash Size |
DN |
 ID
|
 OD
|
 WP
|
 BP
|
 BR/r
|
 W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | g/m | |||
| PH348-02 | -02 | 03 | 1/8 | 3.2 | 0.280 | 7.1 | 5000 | 350 | 20000 | 1400 | 1.0 | 25 | 84 |
| PH348-03 | -03 | 05 | 3/16 | 4.8 | 0.380 | 9.7 | 5000 | 350 | 17400 | 1200 | 1.2 | 30 | 141 |
| PH348-04 | -04 | 06 | 1/4 | 6.4 | 0.460 | 11.7 | 4350 | 300 | 15600 | 1100 | 1.6 | 40 | 182 |
| PH348-05 | -05 | 08 | 5/16 | 8.0 | 0.535 | 13.6 | 3500 | 240 | 14000 | 960 | 2.0 | 50 | 222 |
| PH348-06 | -06 | 10 | 3/8 | 9.5 | 0.600 | 15.2 | 3265 | 225 | 12800 | 880 | 2.4 | 60 | 263 |
| PH348-08 | -08 | 12 | 1/2 | 12.7 | 0.725 | 18.4 | 2750 | 190 | 10000 | 700 | 3.0 | 75 | 350 |
| PH348-10 | -10 | 16 | 5/8 | 16.0 | 0.875 | 22.2 | 2175 | 150 | 8000 | 560 | 4.3 | 110 | 461 |
| PH348-12 | -12 | 20 | 3/4 | 19.0 | 1.020 | 25.9 | 1890 | 130 | 6400 | 460 | 6.0 | 150 | 550 |
| PH348-16 | -16 | 25 | 1 | 25.4 | 1.275 | 32.4 | 1525 | 105 | 5800 | 400 | 9.1 | 230 | 692 |
Temperature Range : Continuous: -40°C to +100°C Temp. not to exceed +70°C for Air and Water based fluids
Applications
- Agricultural machinery
- Industrial applications
- Oil & Gas systems
FAQ
What materials are used in the construction of the GT348 hydraulic hose?
What is the pressure range for the GT348 hydraulic hose?
What applications is the GT348 hydraulic hose suitable for?
THERMOPLASTIC HYDRAULIC HOSE - GT348 - MEDIUM PRESSURE HYDRAULIC HOSE - 1WB
- Brand: GTeek
- Product Code: 348 - MEDIUM PRESSURE HYDRAULI
- Availability: In Stock
