Applicable Standard : SAE 100R8 / DIN EN ISO 3949

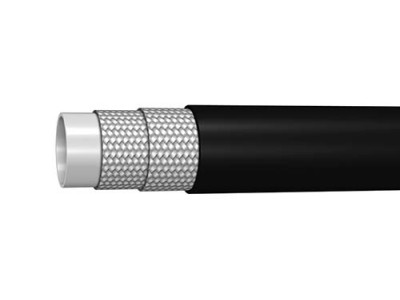

Construction :
Inner tube : Thermoplastic Elastomer
Reinforcement : Double Braids of Synthetic Wire
Cover : Polyurethane, Black Colour, Pin pricked
Application : High pressure hydraulic lines 140 to 350 bar high pressure, light weight and low change in length. Suitable for hydraulic application with increased resistance to abrasion for use with petroleum, synthetic or water based fluids in hydraulic system, Agricultural machinery, Earthmoving, safety, rescue and Material handling equipment. Also suitable for industrial gases and other applications. Please consult manufacturer
| Item Code |
Dash Size |
DN |
 ID
|
 OD
|
 WP
|
 BP
|
 BR/r
|
 W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | g/m | |||
| PH353-03 | -03 | 05 | 3/16 | 4.8 | 0.490 | 12.4 | 5000 | 350 | 20000 | 1400 | 1.6 | 40 | 136 |
| PH353-04 | -04 | 06 | 1/4 | 6.4 | 0.635 | 16.1 | 5000 | 350 | 20000 | 1400 | 1.8 | 45 | 220 |
| PH353-05 | -05 | 08 | 5/16 | 8.0 | 0.660 | 16.8 | 4250 | 290 | 17000 | 1160 | 2.2 | 55 | 232 |
| PH353-06 | -06 | 10 | 3/8 | 9.5 | 0.730 | 18.5 | 4000 | 280 | 16000 | 1120 | 2.6 | 65 | 260 |
| PH353-08 | -08 | 12 | 1/2 | 12.7 | 0.890 | 22.6 | 3500 | 245 | 14000 | 980 | 3.0 | 77 | 356 |
| PH353-10 | -10 | 16 | 5/8 | 16.0 | 1.020 | 25.9 | 2750 | 190 | 11000 | 760 | 4.0 | 100 | 405 |
| PH353-12 | -12 | 20 | 3/4 | 19.0 | 1.140 | 29.0 | 2250 | 155 | 9000 | 620 | 5.5 | 140 | 476 |
| PH353-16 | -16 | 25 | 1 | 25.4 | 1.420 | 36.1 | 2000 | 140 | 8000 | 560 | 8.0 | 200 | 637 |
Temperature Range : Continuous: -40°C to +100°C Temp. not to exceed +70°C for Air and Water based fluids
Applications
- Agricultural Machinery
- Industrial Applications
- Safety and Rescue Equipment
FAQ
What is the inner tube material of the GT353 hydraulic hose?
What pressure range can the GT353 hydraulic hose handle?
Is the GT353 hydraulic hose suitable for use with petroleum-based fluids?
THERMOPLASTIC HYDRAULIC HOSE - GT353 - HIGH PRESSURE HYDRAULIC HOSE - R8 (2PB)
- Brand: GTeek
- Product Code: 353 - HIGH PRESSURE HYDRAULIC
- Availability: In Stock
Available Options
Related Products
THERMOPLASTIC HYDRAULIC HOSE - GT148 - MEDIUM PRESSURE HYDRAULIC HOSE - R7
Applicable Standard : SAE 100R7 / DIN EN ISO 3949 Construction : Inner tube : Thermoplastic Elastomer Reinforcement : Single Braid of Synthetic Fiber Cover : Polyurethane, Black Colour, Pin pricked Application : Medium pressure hydraulic lines 70 to 210 bar. Suitable for hydraulic application with increased resistance to abrasion for use with petroleum, synthetic or water based fluids in hydraulic systems. Suitable for Agricultural machinery, Earthmoving, Articulating &..
THERMOPLASTIC HYDRAULIC HOSE - GT149 - HIGH PRESSURE HYDRAULIC HOSE - R8
Applicable Standard : SAE 100R8 / DIN EN ISO 3949 Construction : Inner tube : Thermoplastic Elastomer Reinforcement : One or more Braids of Aramid Fiber Cover : Polyurethane, Black Colour, Pin pricked Application : High Pressure hydraulic lines 100 to 420 bar compact, high pressure, light weight and low change in length. Suitable for hydraulic application with increased resistance to abrasion for use with petroleum, synthetic or water based fluids in hydraulic system. S..
THERMOPLASTIC HYDRAULIC HOSE - GT349 - HIGH PRESSURE HYDRAULIC HOSE - 2WB
Construction : Inner tube : Thermoplastic Elastomer Reinforcement : Double Braids of Steel Wire Cover : Polyurethane, Black Colour, Pin pricked (Optional) Application : High pressure hydraulic Lines 150 to 450 bar compact, high pressure, light weight and low change in length. Suitable for hydraulic application with increased resistance to abrasion for use with petroleum, synthetic or water based fluids in hydraulic system, Agricultural machinery, Earthmoving, safety, resc..
THERMOPLASTIC HYDRAULIC HOSE - GT358 - R7 COMPACT HOSE
Construction : Inner tube : Thermoplastic Elastomer Reinforcement : One or more Braids of Synthetic Fiber Cover : Polyurethane, Black Colour, Pin pricked Application : Medium pressure hydraulic lines 230 bar. Suitable for hydraulic application with increased resistance to abrasion for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural machinery, Earthmoving, Articulating & Telescopic booms and material handling equipment ..

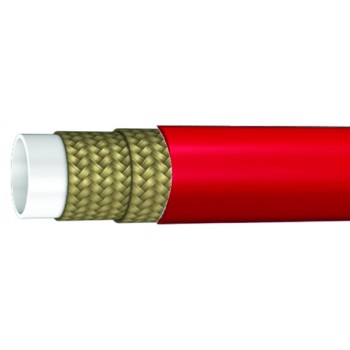

THERMOPLASTIC HIGH PRESSURE HOSE - GT350 - HIGH PRESSURE JACK HOSE
