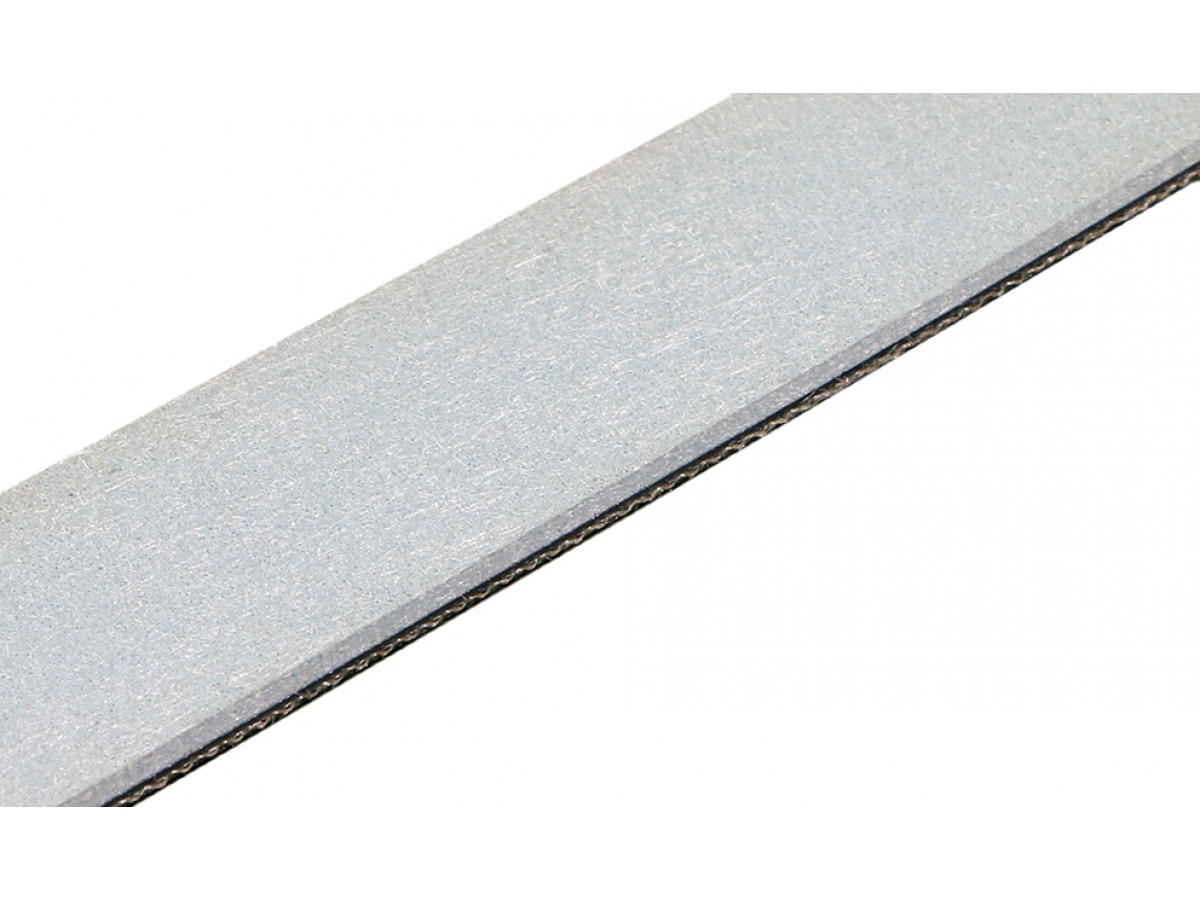

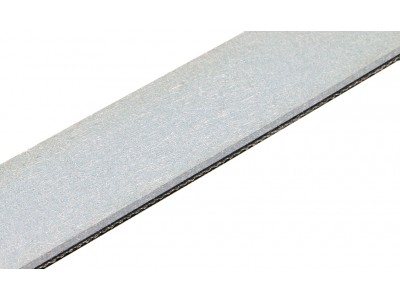

Polyamide Machine Tapes O-1
| Product Name | O-1 |
| Type | Polyamide Machine Tapes |
| Model | --- |
| Thickness | 2.9 mm / 0.11 inch |
| Pulley Diameter | 40 mm / 1.57 inch |
| k1% relaxed | 3.4 N/mm / 19 lbf/in |
| Max temp | 100 °C / 212 °F |
| Conveying side cover Material | Polyamide (PA) |
| Conveying side cover Structure | Nonwoven (fleece) structure |
| Conveying side cover Property | Non-adhesive |
| Conveying side cover Color | Light gray |
| Traction layer | Polyamide (PA) |
| Pulley side material | Acrylonitrile-Butadiene-Rubber (NBR) |
| Structure pulley side | Coarse textile structure |
| Color pulley side | Adhesive |
| Antistatic | No |
| Troughed | Yes |
| Joining method | Machine tape, Paper handling belt, Processing belt |
| Applications | Abrasion resistant, Constant and gentle positive grip, Constant coefficient of friction, Forgiving in case of short term shock like overloads, Non-marking, Oil resistant |
| Produced | Habasit AG (Reinach) |
| Status | Released |
Applications
- Industrial Applications
- Automotive Manufacturing
- Chemical Processing
FAQ
What material is used for Polyamide Machine Tapes O-1?
What is the thickness of the O-1 tape?
Is there a specific model for the Polyamide Machine Tapes O-1?
