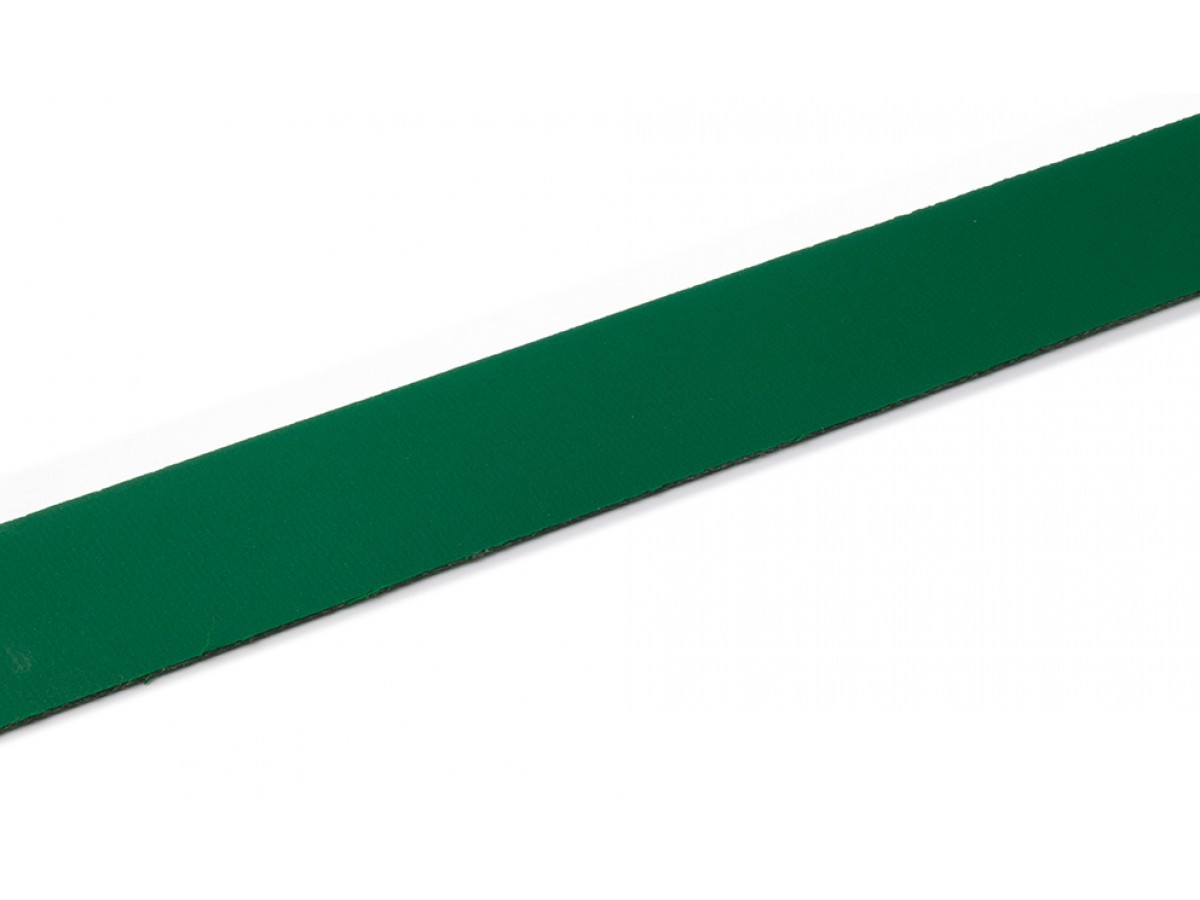

Polyamide Machine Tapes F-0
| Product Name | F-0 |
| Type | Polyamide Machine Tapes |
| Model | --- |
| Thickness | 0.70 mm / 0.03 inch |
| Pulley Diameter | 20 mm / 0.79 inch |
| k1% relaxed | 1.8 N/mm / 10 lbf/in |
| Max temp | 100 °C / 212 °F |
| Conveying side cover Material | Acrylonitrile-Butadiene-Rubber (NBR) |
| Conveying side cover Structure | Rough structure |
| Conveying side cover Property | Adhesive |
| Conveying side cover Color | Green |
| Traction layer | Polyamide (PA) |
| Pulley side material | Acrylonitrile-Butadiene-Rubber (NBR) |
| Structure pulley side | Impregnated fabric |
| Color pulley side | Non-adhesive |
| Antistatic | No |
| Troughed | Yes |
| Joining method | Machine tape, Paper handling belt, Processing belt |
| Applications | Abrasion resistant, Constant and gentle positive grip, Constant coefficient of friction, Forgiving in case of short term shock like overloads, Versatile, Outstanding flex-fatigue |
| Produced | Habasit AG (Reinach) |
| Status | Released |
Applications
- Industrial Manufacturing
- Automotive Assembly
- Chemical Processing
FAQ
What is the thickness of Polyamide Machine Tapes F-0?
What type of material is used in Polyamide Machine Tapes F-0?
Is there a specific model for Polyamide Machine Tapes F-0?
