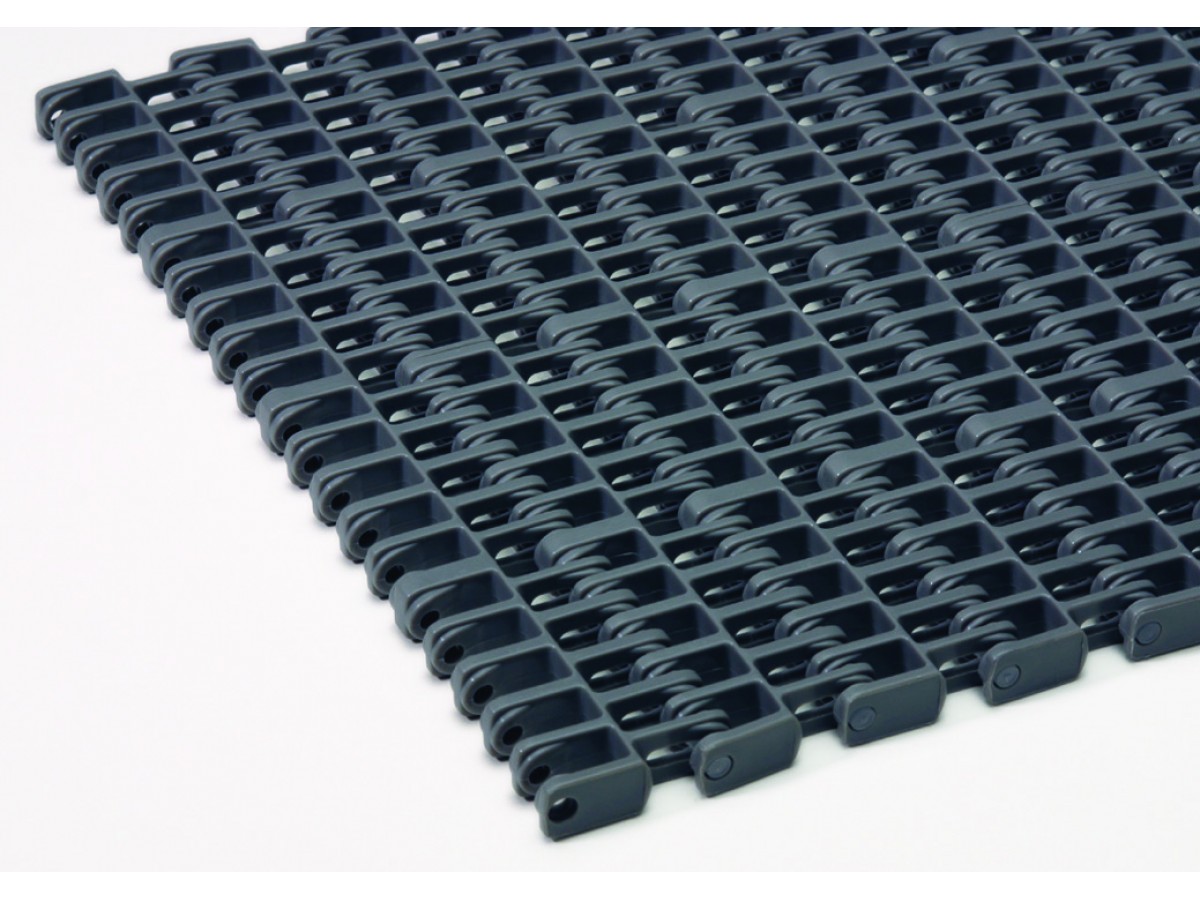

Plastic Modular Belt SP615 (Flush Grid)
| Product name | SP615 (Flush Grid) |
| Belt type | SP615 |
| Product type | 1.5" RS Straight SP615 |
| Style | Flush Grid |
| Thickness | 15 mm / 0.59 inch |
| Width | Standard range of belt widths in increments of 3" (76.2mm) starting from 6" (152.4mm). Non standard widths are offered in increments of 0.625" (15.9mm) starting from 4" (101.6mm) upon request. Material selection may affect belt width — please contact your local partner for actual dimensions. |
| Rod type | Snap Fit |
| Rod diameter | 4.8 mm / 0.188 inch |
| Hinge | Closed hinge |
| Idle roller minimum | 61 mm / 2.40 inch |
| Saniclip | |
| Nominal pitch | 38.1 mm / 1.5 inch |
| Type | SP615 (Flush Grid) |
| Produced | Habasit America (Leesport) |
Applications
- Manufacturing
- Food Processing
- Recycling
FAQ
What materials is the SP615 belt made from?
What is the range of applications for the SP615 belt?
How is the SP615 belt installed?
