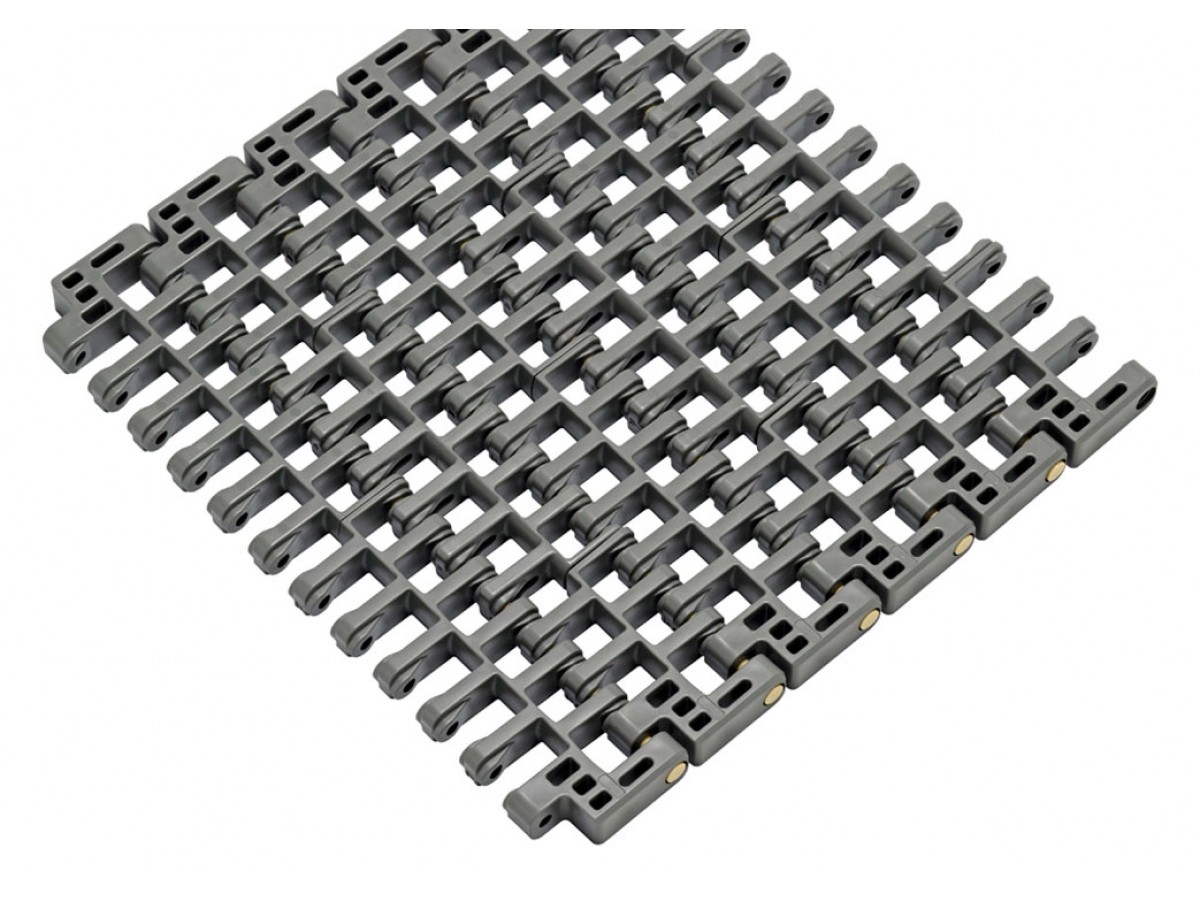

Plastic Modular Belt SE620 (Straight Edge Flush Grid)
| Product name | SE620 (Straight Edge Flush Grid) |
| Belt type | SE620 |
| Product type | 2.0" RS Straight SP620/SE620 |
| Style | Flush Grid |
| Thickness | 20 mm / 0.79 inch |
| Width | Standard range of belt widths in increments of 3" (76.2mm) starting from 7.25" (184.2mm) Non standard widths are offered in increments of 1" (25.4mm) starting from 7.25" (184.2mm) upon request. Material selection may affect belt width — please contact your local partner for actual dimensions. |
| Rod type | Snap Fit |
| Rod diameter | 6.4 mm / 0.25 inch |
| Hinge | Closed hinge |
| Idle roller minimum | 89 mm / 3.50 inch |
| Saniclip | |
| Nominal pitch | 50.8 mm / 2 inch |
| Type | SE620 (Straight Edge Flush Grid) |
| Produced | Habasit America (Leesport) |
Applications
- Manufacturing
- Automotive
- Food Processing
FAQ
What materials are used in the SE620 belt?
What is the width of the SE620 belt?
How is the SE620 belt installed?
Plastic Modular Belt SE620 (Straight Edge Flush Grid)
- Brand: Habasit
- Product Code: SE620
- Availability: In Stock
