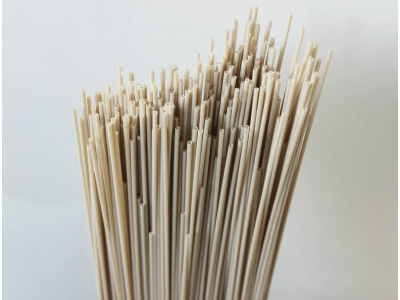

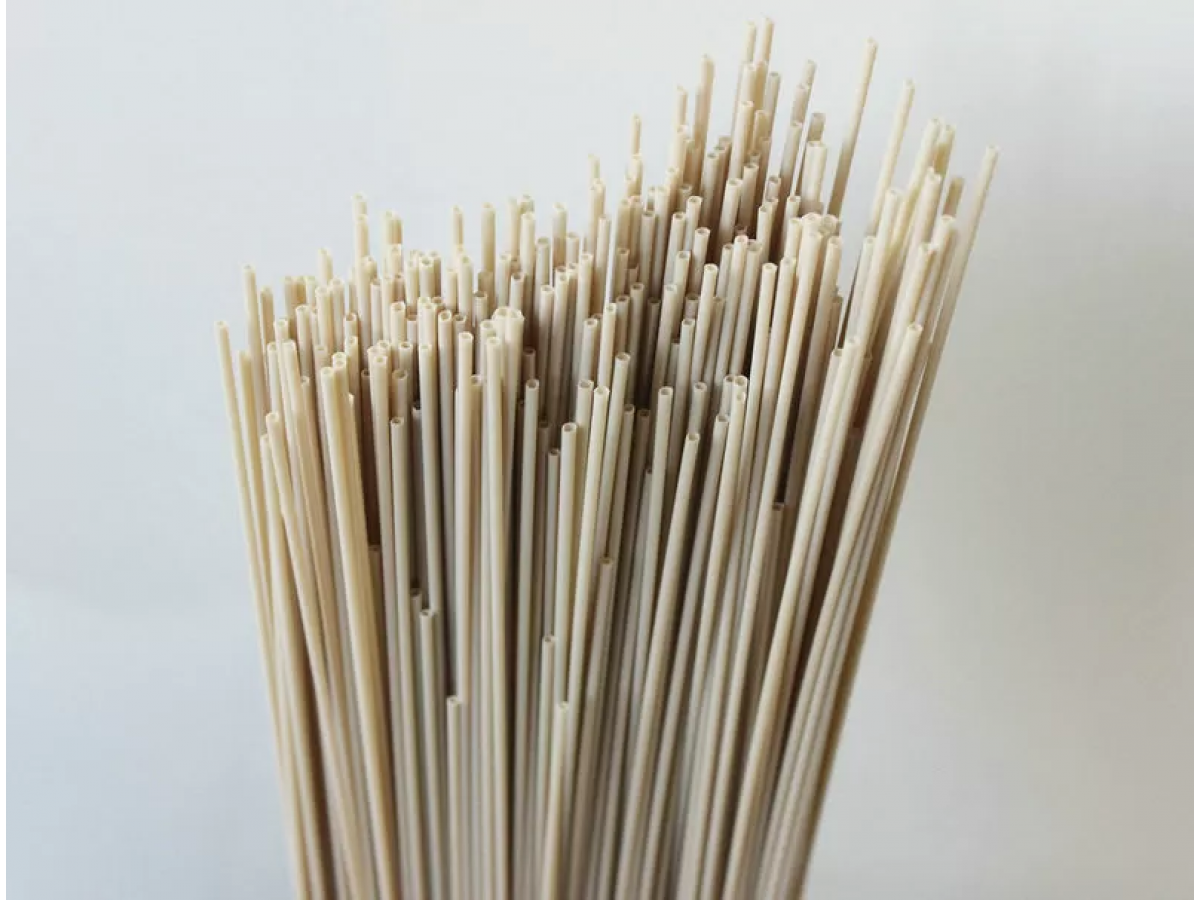

Medical grade PEEK Capillary Tubing
PEEK capillary tubing of this kind is biocompatible. Medical PEEK capillary tubing is a kind of thin, tiny tube that is especially intended for use in biomedical applications. It is composed of polyether ether ketone (PEEK) material.
It is frequently used in medical devices like implants and catheters because it is biocompatible, which means that when it is inserted in the body, it does not have any negative effects.
PEEK capillary tubing is renowned for its exceptional strength, resilience to heat and chemicals, and durability, which makes it a great option for biomedical applications where dependability and efficiency are crucial. Medical PEEK capillary tubing is ideal for a variety of medical applications due to its exceptional mechanical qualities and biocompatibility.
Crucial Characteristics of the PEEK Capillary Tubes for medical use:
- Extremely durable material
- Excellent tolerance to chemicals
- Stable up to 228°C in temperature
- Superior resilience against abrasion
- UL94 V-0 flame retardant
- Extremely precise tolerances on dimensions
PEEK tubing for medical use / medical grade variations:
- In neat, square-cut coils, on spools, or in straight lengths
- Opaque or translucent
- Bumped tubing, where the wall thickness varies throughout the length
- Color-coded PEEK medical grade capillary tubing
- PEEK medical grade capillary tubing in many layers
- PEEK tubing for medical use - reinforced with stainless steel wires
- Form-fitting tubes
| Properties Information | ||||||
| Property | Reference Standard | Test Method | Unit | Specification | Result | |
| Physical Properties | Glass Transition | ASTM F2026 | ASTM D3418 | °C | 125-165 | 147 |
| Temperature, Tg | ||||||
| Melt Temperature, Tm | ASTM F2026 | ASTM D3418 | °C | 320-360 | 338 | |
| Recrystallization | ASTM F2026 | ASTM D3418 | °C | 260-320 | 289 | |
| Temperature, Tc | ||||||
| Viscosity | ASTM F2026 | ISO 11443 | Pa·s | 400-480 | 437 | |
| Infrared Spectrum | ASTM F2026 | ASTM F1579 | / | See Appendix X1 | See Appendix X2 | |
| Density | ASTM F2026 | ASTM D1505 | kg/m3 | 1280-1320 | 1294 | |
| Chemical Properties | Total Heavy Metals (Ag, As, Bi, Cd, Cu, Hg, Mo, Pb, Sb, and Sn), max | ASTM F2026 | US Pharmacopeia, | ppm | <100 | ＜10 |
| Test 233 | ||||||
| Mechanical Properties | Tensile Strength at Yield (zero slope), min | ASTM F2026 | ASTM D638, Type IV, 5.08 cm/min | MPa | 90 | 105 |
| Tensile Strength at Break, min | ASTM F2026 | ASTM D638, Type IV, 5.08 cm/min | MPa | 70 | 80 | |
| Elongation at Break, min | ASTM F2026 | ASTM D638, Type IV, 5.08 cm/min | % | 5 | 18 | |
| Flexural Strength, min | ASTM F2026 | ASTM D790 | MPa | 110 | 163 | |
| Flexural Modulus, min | ASTM F2026 | ASTM D790 | GPa | 3 | 4 | |
| Impact Strength, | ASTM F2026 | ISO 180 | kJ/m2 | 4 | 9 | |
| Notched Izod, min | ||||||
| Biological Properties | Genotoxicity | ISO 10993-3 | ISO 10993-3 | / | Negative | Negative |
| Animal Intracutaneous (Intradermal) Reactivity | ISO 10993-10 | ISO 10993-10 | / | ≤1 | 0 | |
| Skin Sensitization | ISO 10993-10 | ISO 10993-10 | / | ≤1 | 0 | |
| Acute Systemic Toxicity | ISO 10993-11 | ISO 10993-11 | / | No Acute Systemic Toxicity | No Acute Systemic Toxicity | |
| Subchronic Systemic Toxicity | ISO 10993-11 | ISO 10993-11 | / | No Subchronic Systemic Toxicity | No Subchronic Systemic Toxicity | |
| local Effects After Implantation | ISO 10993-6 | ISO10993-6 | / | No obvious difference between the test sample and the control sample | No obvious difference between the test sample and the control sample | |
| In Vitro Cytotoxicity | ISO 10993-5 | ISO10993-5 | / | ≤1 | 1 | |
| Evaluation of Haemolytic Properties | ISO 10993-4 | ISO10993-4 | % | ＜5 | 1 | |
| Material Mediated Pyrogens | ISO 10993-11 | ISO 10993-11 | / | No Pyrogenic Responses | No Pyrogenic Responses | |
| Extractables of The Material | ISO 10993-18 | ISO 10993-18 | μg/g | The contents of Phenyl Sulfone≤300 | The contents of Phenyl Sulfone＜0.09 | |
Applications
- Medical Devices
- Laboratory Applications
- Fluid Management
FAQ
What is PEEK material?
What are the applications of PEEK capillary tubing?
How does PEEK tubing perform under extreme conditions?
Medical grade PEEK Capillary Tubing
- Brand: GTeek
- Product Code: Medical grade PEEK Capillary Tubing
- Availability: ✅On stock
