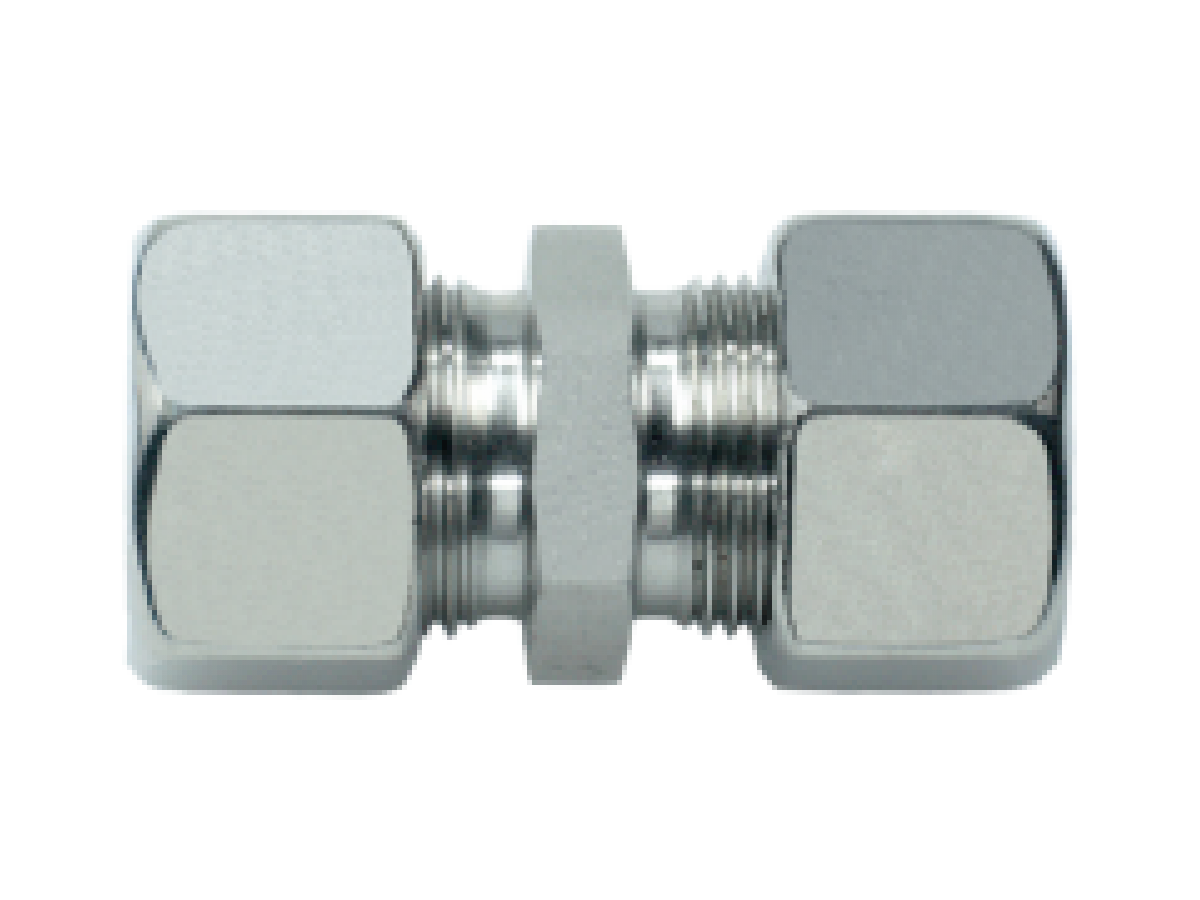

DIN2353 Cutting ring - GV - Straight Couplings - Standard

Pressure	Tube O.D.	Approx. Dimensions				Order-Code
PN	D1	L1	L2	SW1	SW3
Series LL
100	4	35,0	12	9	10	GV-LL-04
100	6	36,0	9	11	12	GV-LL-06
100	8	38,5	12	12	14	GV-LL-08
100	12	40,5	11	17	19	GV-LL-12
Series L
500	6	44,0	10	12	14	GV-L-06
500	8	45,0	11	14	17	GV-L-08
500	10	48,0	13	17	19	GV-L-10
400	12	49,0	14	19	22	GV-L-12
400	15	54,0	16	24	27	GV-L-15
400	18	56,0	16	27	32	GV-L-18
250	22	63,0	20	32	36	GV-L-22
250	28	65,0	21	41	41	GV-L-28
250	35	74,0	20	46	50	GV-L-35
250	42	75,0	21	55	60	GV-L-42
Series S
800	6	50,0	16	14	17	GV-S-06
800	8	52,0	18	17	19	GV-S-08
800	10	54,0	17	19	22	GV-S-10
630	12	57,0	19	22	24	GV-S-12
630	14	63,0	22	24	27	GV-S-14
630	16	65,0	21	27	30	GV-S-16
420	20	73,0	23	32	36	GV-S-20
420	25	84,0	26	41	46	GV-S-25
420	30	88,0	27	46	50	GV-S-30
420	38	99,0	29	55	60	GV-S-38

General specification
Material:	Stainless Steel 1.4571
Standard	DIN 2353 / -DIN-EN-ISO-8434-1

Applications

Industrial Applications
Automotive Systems
Oil & Gas Industry

FAQ

What is the maximum pressure rating for these couplings?

The maximum pressure rating for these couplings is PN 100.

What tube outer diameters are available?

The available tube outer diameters are 4mm, 6mm, 8mm, and 12mm.

How do I install the DIN2353 cutting rings?

Installation involves ensuring the tube is cut squarely, inserting it into the coupling, and tightening the nut to the specified torque.

EXPERT ADVICE: Ensure proper alignment of the tube and coupling during installation to prevent leaks and ensure optimal performance.
