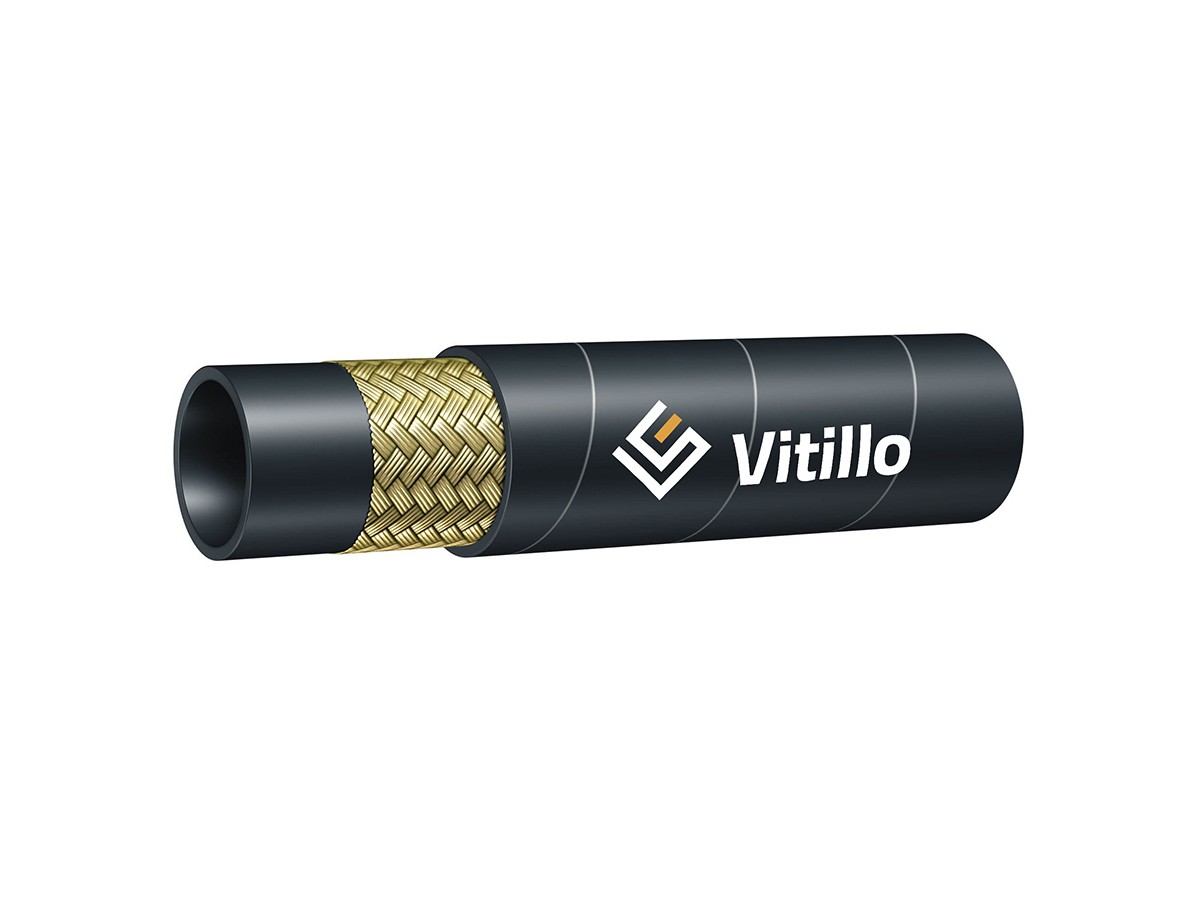

Wire braided Hydraulic hose Tekno 1SC Plus EXCEED EN 857 1SC
Hydraulic hose for Return lines - Pilot Lines - Low - Medium Pressure Hydraulic Lines - Installation constraints. Wire braided reinforced hydraulic hoses for medium pressure lines with installation constraints and pilot lines. Operating temperature range: From -40°C up to +100°C, with peak of +125°C.
This hydraulic hose has High abrasion resistance (MSHA approved flame resistance) as well.
Qualified fluids: Mineral oils, vegetable and rapeseed oils, glycol and polyglicol oils, synthetic ester based oils, oils in aqueous emulsion, water.
- Tube: Oil resistant synthetic rubber.
- Reinforcement: One high tensile steel braid.
- Cover: Black, oil and environment resistant synthetic rubber.
| CODE | DN | HOSE SIZE | OUTSIDE DIAMETER | MAX WP | MINIMUM BUST PRESSURE | MIN BEND RADIUS | WEIGHT |
|---|---|---|---|---|---|---|---|
| TH1SC04P | 06 | 1/4" | 12.2 | 275 | 1100 | 45 | 0.200 |
| TH1SC05P | 08 | 5/16" | 13.5 | 255 | 1020 | 55 | 0.230 |
| TH1SC06P | 10 | 3/8" | 15.6 | 215 | 860 | 60 | 0.290 |
| TH1SC08P | 12 | 1/2" | 19.1 | 170 | 680 | 70 | 0.380 |
| TH1SC10P | 16 | 5/8" | 22.4 | 150 | 600 | 90 | 0.460 |
| TH1SC12P | 19 | 3/4" | 26.0 | 125 | 500 | 100 | 0.550 |
| TH1SC16P | 25 | 1" | 33.4 | 100 | 400 | 160 | 0.900 |
| TH1SC20P | 31 | 1"1/4 | 40.9 | 90 | 360 | 210 | 1.125 |
| TH1SC24P | 38 | 1"1/2 | 47.5 | 60 | 240 | 300 | 1.250 |
| TH1SC32P | 51 | 2" | 60.5 | 50 | 200 | 400 | 1.600 |
| Hose specification | |
| Inner tube | Oil resistant synthetic rubber. |
| Reinforcement | One high tensile steel braid. |
| Outer Cover | Black, oil and environment resistant synthetic rubber. |
| Approvals: | EXCEED EN 857 1SC |
| General specification | |
| Applications: | Mineral oils, vegetable and rapeseed oils, glycol and polyglicol oils, synthetic ester based oils, oils in aqueous emulsion, water. |
| Temperature resistance °С | -40°C +100°C ; |
| P [bar] | 275 bar |
| Technical datasheet | Hose for milk and liquid dairy products - 10bar |
Applications
- Industrial Applications
- Automotive Systems
- Hydraulic Lines
FAQ
What materials are used in the construction of the hose?
What is the operating temperature range of this hydraulic hose?
What types of fluids can this hose handle?
