T07/U/EMB TPU Food Belts
| SKU | T07/U/EMB |
| Group | Food Belts |
| Type | TPU |
| Model | H700015706 |
| Thickness | 0.80 mm / 0.03 inch |
| Knife edge radius minimum | 2 mm / 0.079 inch |
| Max seamless width | 2000 mm / 78.74 inch |
| Min pulley diameter Without counter flection | 15 mm / 0.59 inch |
| Min pulley diameter With counter flection | 15 mm / 0.59 inch |
| k1 percent relaxed | 3.4 N/mm / 19 lbf/in |
| Min temp | -30 °C / -22 °F |
| Max temp | 70 °C / 158 °F |
| Material side cover | Thermoplastic polyurethane (TPU) |

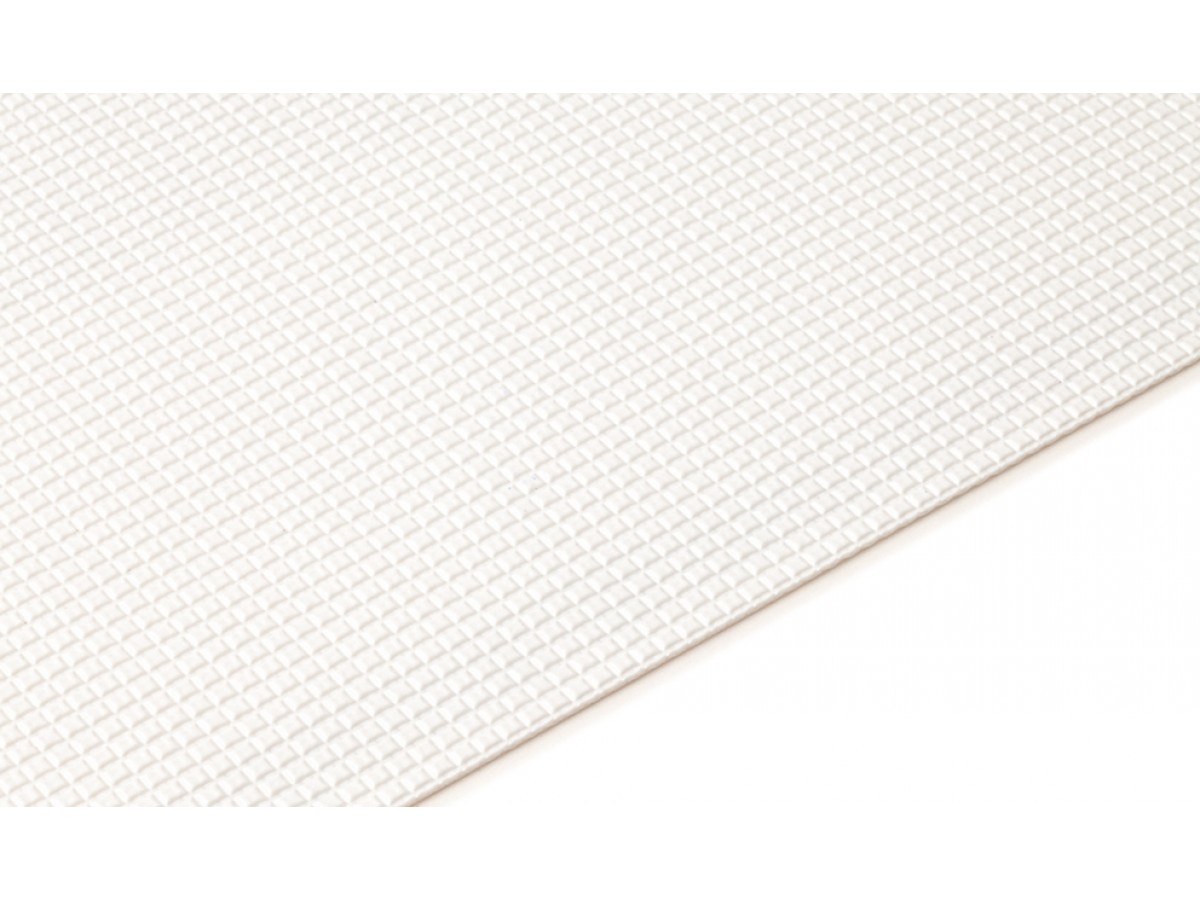

| Structure side cover | Square structure |
| Property side cover | Adhesive |
| Color side cover | White |
| No layers | 1 |
| Pulley side material | Polyester (PET) |
| Structure pulley side | Impregnated fabric |
| Color pulley side | White |
| Antistatic | No |
| Troughed | No |
| Power turns | No |
| Joining method | Flexproof |
| Applications | Chocolate cooling/ embossing, Enrobing belt |
| Industries | Chocolate |
| Features | Abrasion resistant, Knife-edge (nosebar) suitable, Oil and fat resistant, Small pulley diameter suitable |
| Producing unit | Habasit (UK) Ltd. |
| Status | Released |
Applications
- Food Processing
- Manufacturing
- Logistics
FAQ
What material is the T07/U/EMB TPU Food Belt made of?
What is the application range for this food belt?
How should the T07/U/EMB TPU Food Belt be installed?
T07/U/EMB TPU Food Belts
- Brand: Habasit
- Product Code: H700015706
- Availability: In Stock
Available Options
Related Products
T07 Blue TPU Food Belts
T07 Blue TPU Food Belts SKUT07 Blue GroupFood Belts TypeTPU ModelH700001152 Thickness0.65 mm / 0.03 inch Knife edge radius minimum3 mm / 0.118 inch Max seamless width2000 mm / 78.74 inch Min pulley diameter Without counter flection15 mm / 0.59 inch Min pulley diameter With counter flection15 mm / 0.59 inch k1 percent relaxed3.4 N/mm / 19 lbf/in Min temp-20 °C / -4 °F Max temp80 °C / 176 °F Material side coverThermoplastic polyurethane (TPU) Structure ..
T07/U TPU Food Belts
T07/U TPU Food Belts SKUT07/U GroupFood Belts TypeTPU ModelH700001154 Thickness0.65 mm / 0.03 inch Knife edge radius minimum2 mm / 0.079 inch Max seamless width2000 mm / 78.74 inch Min pulley diameter Without counter flection15 mm / 0.59 inch Min pulley diameter With counter flection15 mm / 0.59 inch k1 percent relaxed3.0 N/mm / 17 lbf/in Min temp-30 °C / -22 °F Max temp80 °C / 176 °F Material side coverThermoplastic polyurethane (TPU) Structure side ..
T07/U Aftereight Embossed TPU Food Belts
T07/U Aftereight Embossed TPU Food Belts SKUT07/U Aftereight Embossed GroupFood Belts TypeTPU ModelH700015090 Thickness0.80 mm / 0.03 inch Knife edge radius minimum2 mm / 0.079 inch Max seamless width2000 mm / 78.74 inch Min pulley diameter Without counter flection15 mm / 0.59 inch Min pulley diameter With counter flection15 mm / 0.59 inch k1 percent relaxed3.4 N/mm / 19 lbf/in Min temp-30 °C / -22 °F Max temp80 °C / 176 °F Material side coverThermopl..
T07/U Fine Weave Embossed TPU Food Belts
T07/U Fine Weave Embossed TPU Food Belts SKUT07/U Fine Weave Embossed GroupFood Belts TypeTPU ModelH700001155 Thickness0.80 mm / 0.03 inch Knife edge radius minimum2 mm / 0.079 inch Max seamless width2000 mm / 78.74 inch Min pulley diameter Without counter flection15 mm / 0.59 inch Min pulley diameter With counter flection15 mm / 0.59 inch k1 percent relaxed3.0 N/mm / 17 lbf/in Min temp-30 °C / -22 °F Max temp80 °C / 176 °F Material side coverThermopl..

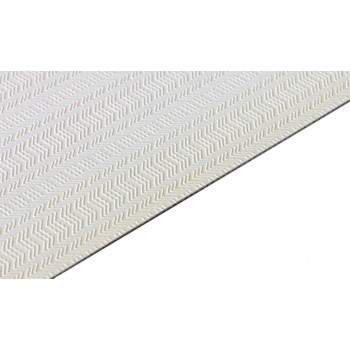

T07/U Mars Embossed TPU Food Belts
