PVC-U ball valve C200 DN40 d50 FKM gaskets

Details
Option certificate 3.1	No
ATEX compatible	No
d (mm)	50
DN	40
Gasket	FKM
Body material	PVC-U
Number of ways	2
PS (bar)	16
Connections	Solvent cement socket connection
Seats	PTFE
TS max (°C)	60
TS min (°C)	0
Ball valve design	3-piece body
Warranty period	1 year

Certificate of Conformity pdf - 209.1 ko

Fiche technique C200-PVCU / joints FPM Robinet à tournant sphérique pdf - 621.4 ko

Data sheet C200-PVCU / gaskets FPM ball valve pdf - 612.5 ko

Applications

Industrial piping systems
Chemical processing
Water treatment

FAQ

What is the body material of the valve?

The body material of the valve is PVC-U.

What is the maximum pressure rating?

The maximum pressure rating is 16 bar.

Is the valve ATEX compatible?

No, the valve is not ATEX compatible.

EXPERT ADVICE: Ensure proper installation to maintain the integrity of the FKM gaskets and prevent leaks.

Escreva um comentário

Seu nome

Seu comentário

Nota: HTML não suportado.

Avaliação Ruim Bom

PVC-U ball valve C200 DN40 d50 FKM gaskets

Marca: France
Modelo: PVC-U ball valve C200 DN40 d50 FKM gaskets
Disponibilidade: Em estoque

Qtd

0 comentários / Escreva um comentário

From: 18.00 € (Ref. price)

Produtos relacionados

PVC-U ball valve C200 DN40 d50 PN16 EPDM gaskets

PVC-U ball valve C200 DN40 d50 PN16 EPDM gasketsC200 ball valve designed with PVC-U body, ball and shaft. PTFE seats. EPDM gasket. Union fittings with female threaded ends. PS: 16 bar. TS: 0°C / +60°C. Manual override with ABS handle. Details Option certificate 3.1NoATEX compatibleNod (mm)50DN40GasketEPDMBody materialPVC-UNumber of ways2PS (bar)16Co..

0,00€

PVC-U ball valve C200 DN32 d40 FKM gaskets

PVC-U ball valve C200 DN32 d40 FKM gaskets Details Option certificate 3.1NoATEX compatibleNod (mm)40DN32GasketFKMBody materialPVC-UNumber of ways2PS (bar)16ConnectionsSolvent cement socket connectionSeatsPTFETS max (°C)60TS min (°C)0Ball valve design3-piece bodyWarranty period1 year ..

0,00€

PVC-U ball valve C200 DN50 d63 FKM gaskets

PVC-U ball valve C200 DN50 d63 FKM gaskets Details Option certificate 3.1NoATEX compatibleNod (mm)63DN50GasketFKMBody materialPVC-UNumber of ways2PS (bar)16ConnectionsSolvent cement socket connectionSeatsPTFETS max (°C)60TS min (°C)0Ball valve design3-piece bodyWarranty period1 year ..

0,00€

PVC-U ball valve C200/FKM gaskets DN40 d50 + PP00

PVC-U ball valve C200/FKM gaskets DN40 d50 + PP00The C200 ball valve with Prisma pneumatic actuator is designed for automatic pipe shut-off. PVC-U body and ball. PTFE seats. Union fittings with female threaded ends to be welded. Single or double spring return. Details Option certificate 3.1NoMaximum delta P (bar)10ActuatorPP00Operating angle (°)90Ad..

0,00€

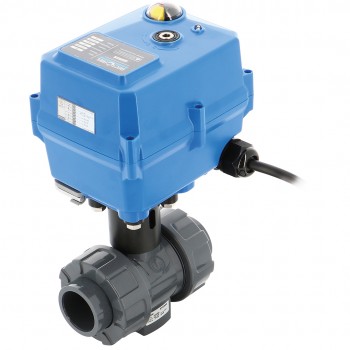

PVC-U ball valve C200/FKM gaskets DN40 d50 + TCR02N
