Open-end Timing Belts - Stainless steel AT10-I
| Model | AT10-I |
| Type | Open-end Timing Belts - Stainless steel |
| Group | HabaSYNC Open-end Timing Belts |
| Description | Metric, AT shape, Modified trapezoidal, 10 mm pitch, Stainless steel cord |
| Open belt admissible tensile force | 3400 N / 764 lbf |
| Joined belt admissible tensile force | 1700 N / 382 lbf |
| Weight | 0.15 kg/m / 0.10 lb/ft |
| Min pulley diameter with counter flection | 120 mm / 4.72 inch |
| Min pulley diameter without counter flection | 50 |
| Teeth | 15 |
| Tooth shape | AT |
| Produced |
Applications
- Industrial Automation
- Automotive Manufacturing
- Construction Equipment
FAQ
What material is the AT10-I belt made of?
What is the pitch of the AT10-I timing belt?
How should the AT10-I timing belt be installed?
Open-end Timing Belts - Stainless steel AT10-I
- Brand: Habasit
- Product Code: AT10-I
- Availability: In Stock
Related Products
Open-end Timing Belts - Highly flexible steel AT10-H
Open-end Timing Belts - Highly flexible steel AT10-H ModelAT10-H TypeOpen-end Timing Belts - Highly flexible steel GroupHabaSYNC Open-end Timing Belts DescriptionMetric, AT shape, Modified trapezoidal, 10 mm pitch, Highly flexible steel cord Open belt admissible tensile force3650 N / 821 lbf Joined belt admissible tensile force1825 N / 410 lbf Weight0.17 kg/m / 0.11 lb/ft Min pulley diameter with counter flection80 mm / 3.15 inch Min pulley diameter without count..
Open-end Timing Belts - Stainless steel AT20-I
Open-end Timing Belts - Stainless steel AT20-I ModelAT20-I TypeOpen-end Timing Belts - Stainless steel GroupHabaSYNC Open-end Timing Belts DescriptionMetric, AT shape, Modified trapezoidal, 20 mm pitch, Stainless steel cord Open belt admissible tensile force4250 N / 955 lbf Joined belt admissible tensile force2125 N / 478 lbf Weight0.24 kg/m / 0.16 lb/ft Min pulley diameter with counter flection240 mm / 9.45 inch Min pulley diameter without counter flection120 Te..
Open-end Timing Belts - Stainless steel T10-I
Open-end Timing Belts - Stainless steel T10-I ModelT10-I TypeOpen-end Timing Belts - Stainless steel GroupHabaSYNC Open-end Timing Belts DescriptionMetric, T shape, Standard trapezoidal, 10 mm pitch, Stainless steel cord Open belt admissible tensile force2178 N / 490 lbf Joined belt admissible tensile force1089 N / 245 lbf Weight0.12 kg/m / 0.08 lb/ft Min pulley diameter with counter flection60 mm / 2.36 inch Min pulley diameter without counter flection60 Teeth12..
Open-end Timing Belts - Standard steel AT10-S
Open-end Timing Belts - Standard steel AT10-S ModelAT10-S TypeOpen-end Timing Belts - Standard steel GroupHabaSYNC Open-end Timing Belts DescriptionMetric, AT shape, Modified trapezoidal, 10 mm pitch, (Standard) steel cord Open belt admissible tensile force4230 N / 951 lbf Joined belt admissible tensile force2120 N / 477 lbf Weight0.15 kg/m / 0.10 lb/ft Min pulley diameter with counter flection120 mm / 4.72 inch Min pulley diameter without counter flection50 Teet..

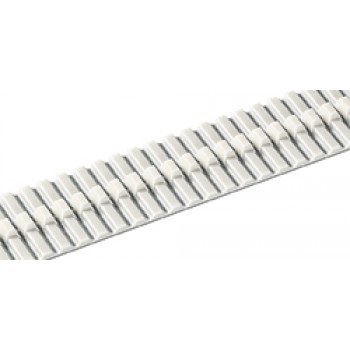

Open-end Timing Belts - Standard steel AT10G13-S
