Non-slip Thermoplastic Polypropylene Honeycomb Sandwich Panels
Basic Specifications
- Total Thickness: Customized 6.0~120mm.
- Top Layer: 1.0mm embossed CFRT sheet. (Customized 0.7~2.0mm)
- Core Layer: 140kg/m³ PP (polypropylene) honeycomb. (Customized 60~160kg/m³)
- Bottom Layer: 1.0mm embossed CFRT sheet. (Customized 0.7~2.0mm)
- Surface Color: Black, gray.
- Length: ≤12m.
- Width: ≤2.8m.
Description
Product Features
- The surface of the anti-skid honeycomb panel is textured CFRT sheets. CFRT is made of multiple layers of thermoplastic unidirectional tapes.
- The addition of carbon black particles makes the panel with good anti-ultraviolet effect.
- The core material adopts high-performance cylindrical PP honeycomb core.
Applications
- Truck floor: dropside trucks, tipper trucks, dry cargo trucks, flatbed trucks, fire trucks, horse trailers, etc.
- Mobile building floors: mobile toilets, temporary houses, construction vehicles, etc.

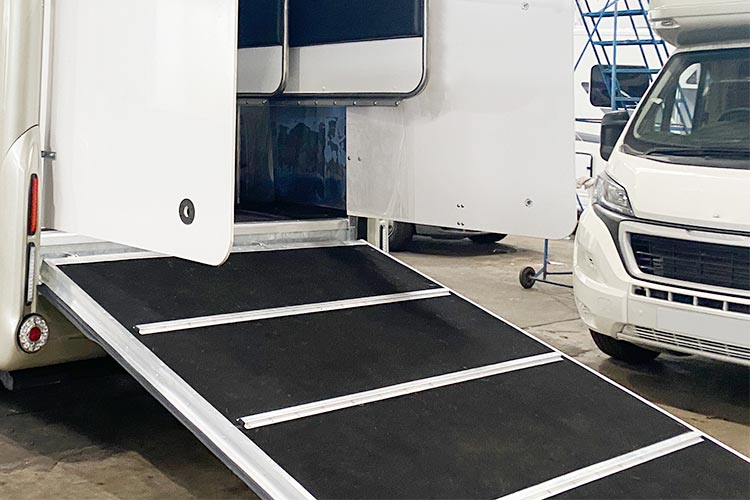

- Others such as scaffolding planks, ramps.
Applications
- Industrial Applications
- Automotive Components
- Marine Structures
FAQ
What materials are used in the panels?
What is the thickness range of the panels?
Can the panel dimensions be customized?
Non-slip Thermoplastic Polypropylene Honeycomb Sandwich Panels
- Brand: GTeek
- Product Code: Non-slip Thermoplastic Polypropylene Honeycomb Sandwich Panels
- Availability: In Stock
