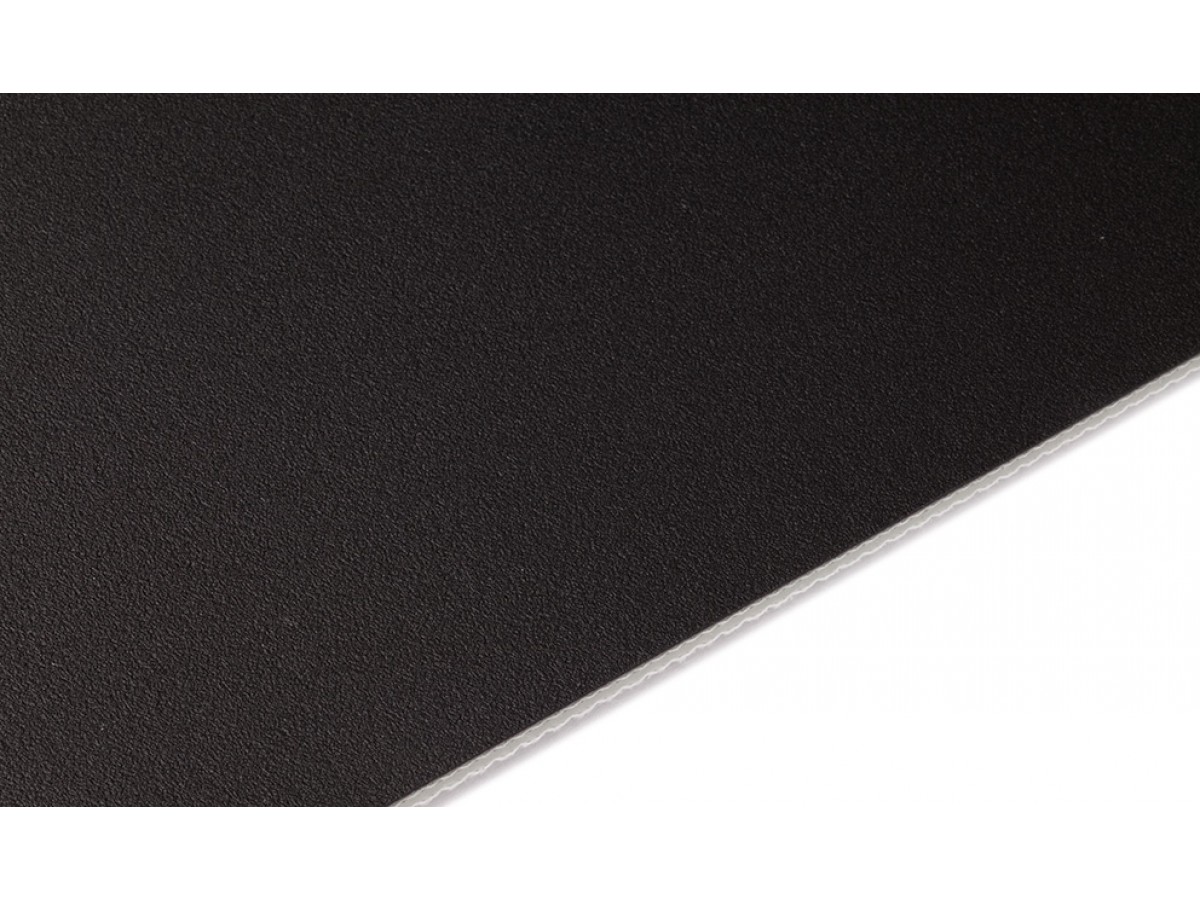

NHM-10EKBV 11 PVC Light Conveyor Belts
| SKU | NHM-10EKBV 11 |
| Group | Light Conveyor Belts |
| Type | PVC |
| Model | |
| Thickness | 2.1 mm / 0.08 inch |
| Knife edge radius minimum | |
| Max seamless width | 3000 mm / 118.11 inch |
| Min pulley diameter Without counter flection | |
| Min pulley diameter With counter flection | |
| k1 percent relaxed | |
| Min temp | -10 °C / 14 °F |
| Max temp | 70 °C / 158 °F |
| Material side cover | Polyvinylchloride (PVC) |
| Structure side cover | Super matt finish |
| Property side cover | Non-adhesive |
| Color side cover | Black |
| No layers | 2 |
| Pulley side material | Polyester (PET) |
| Structure pulley side | Fabric |
| Color pulley side | White |
| Antistatic | Yes |
| Troughed | No |
| Power turns | No |
| Joining method | Flexproof |
| Applications | Check-out belt, Sorting belt, Transfer belt, Loading/Unloading belt |
| Industries | Distribution centers, General conveying |
| Features | Abrasion resistant, Anti-glare, Antistatic, Low noise applications suitable, Metal detection units suitable |
| Producing unit | Habasit Italiana S.p.A. (Vigliano) |
| Status | Released |
Applications
- Manufacturing
- Automotive Assembly
- Food Processing
FAQ
What material is the NHM-10EKBV 11 conveyor belt made of?
What is the typical application range for this conveyor belt?
How is the NHM-10EKBV 11 conveyor belt installed?
NHM-10EKBV 11 PVC Light Conveyor Belts
- Brand: Habasit
- Product Code:
- Availability: In Stock
Available Options
Related Products

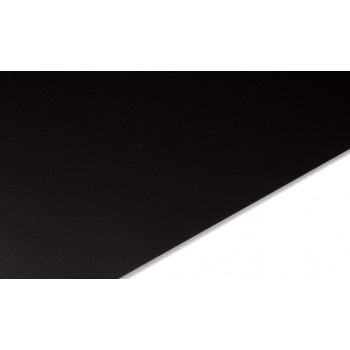

NHB-10EKBV 11 PVC Light Conveyor Belts
