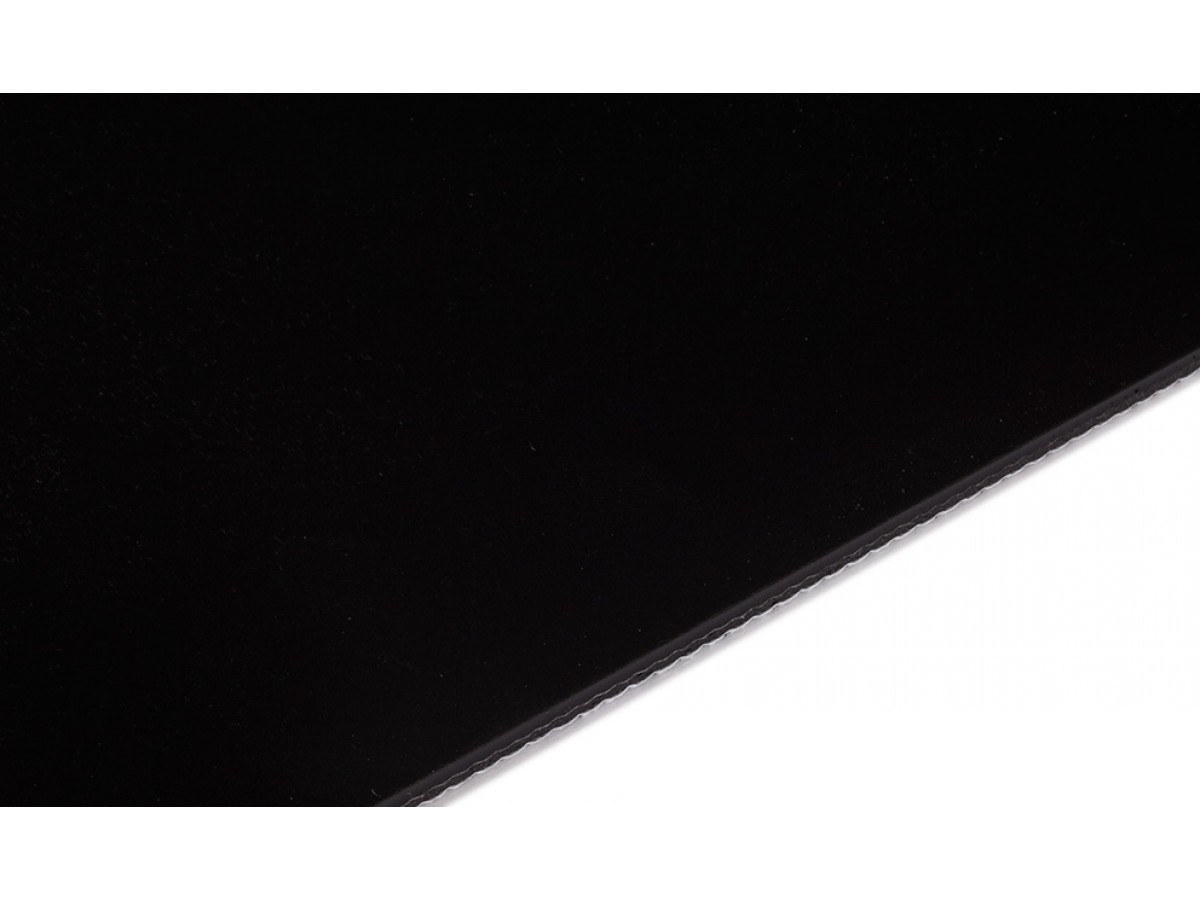

NAB-10ESBV 13 PVC Light Conveyor Belts
| SKU | NAB-10ESBV 13 |
| Group | Light Conveyor Belts |
| Type | PVC |
| Model | |
| Thickness | 3.0 mm / 0.12 inch |
| Knife edge radius minimum | |
| Max seamless width | 3000 mm / 118.11 inch |
| Min pulley diameter Without counter flection | |
| Min pulley diameter With counter flection | |
| k1 percent relaxed | |
| Min temp | -15 °C / 5 °F |
| Max temp | 70 °C / 158 °F |
| Material side cover | Polyvinylchloride (PVC) |
| Structure side cover | Smooth |
| Property side cover | Adhesive |
| Color side cover | Black |
| No layers | 2 |
| Pulley side material | Polyester (PET) |
| Structure pulley side | Fabric |
| Color pulley side | Gray |
| Antistatic | Yes |
| Troughed | No |
| Power turns | No |
| Joining method | Flexproof |
| Applications | Transfer belt |
| Industries | Airport, Distribution centers |
| Features | Absorption of shock loads, Antistatic, Flame retardant, Low noise applications suitable |
| Producing unit | Habasit Italiana S.p.A. (Vigliano) |
| Status | Released |
Applications
- Manufacturing
- Logistics
- Food Processing
FAQ
What material is the NAB-10ESBV 13 conveyor belt made of?
What is the typical application range for this conveyor belt?
How should the NAB-10ESBV 13 conveyor belt be installed?
NAB-10ESBV 13 PVC Light Conveyor Belts
- Κατασκευαστής: Habasit
- Κωδικός Προϊόντος:
- Διαθεσιμότητα: Διαθέσιμο
Διαθέσιμες Επιλογές
Σχετικά Προϊόντα
NAB-10EEAV 11 PVC Light Conveyor Belts
NAB-10EEAV 11 PVC Light Conveyor Belts SKUNAB-10EEAV 11 GroupLight Conveyor Belts TypePVC ModelH100066121 Thickness2.5 mm / 0.10 inch Knife edge radius minimum Max seamless width3000 mm / 118.11 inch Min pulley diameter Without counter flection Min pulley diameter With counter flection k1 percent relaxed Min temp-10 °C / 14 °F Max temp70 °C / 158 °F Material side coverPolyvinylchloride (PVC) Structure side coverSmooth Property side coverMedium-adhesive Color side..
0,00€
NAB-10ELBV 11 PVC Light Conveyor Belts
NAB-10ELBV 11 PVC Light Conveyor Belts SKUNAB-10ELBV 11 GroupLight Conveyor Belts TypePVC ModelH100066138 Thickness2.2 mm / 0.09 inch Knife edge radius minimum Max seamless width3000 mm / 118.11 inch Min pulley diameter Without counter flection Min pulley diameter With counter flection k1 percent relaxed Min temp-10 °C / 14 °F Max temp70 °C / 158 °F Material side coverPolyvinylchloride (PVC) Structure side coverSmooth Property side coverAdhesive Color side coverB..
0,00€
NAB-10ELDV 11 PVC Light Conveyor Belts
NAB-10ELDV 11 PVC Light Conveyor Belts SKUNAB-10ELDV 11 GroupLight Conveyor Belts TypePVC ModelH100066131 Thickness2.1 mm / 0.08 inch Knife edge radius minimum Max seamless width3000 mm / 118.11 inch Min pulley diameter Without counter flection Min pulley diameter With counter flection k1 percent relaxed Min temp-10 °C / 14 °F Max temp70 °C / 158 °F Material side coverPolyvinylchloride (PVC) Structure side coverSmooth Property side coverAdhesive Color side coverD..
0,00€

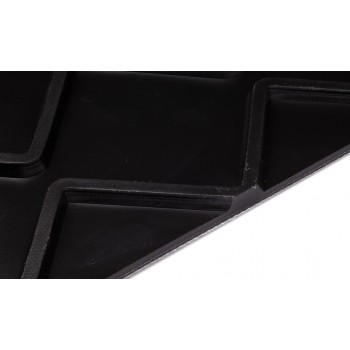

NAD-10ESBV 13 PVC Light Conveyor Belts
