Applicable Standard : EN 856 - 4SP / ISO 3862

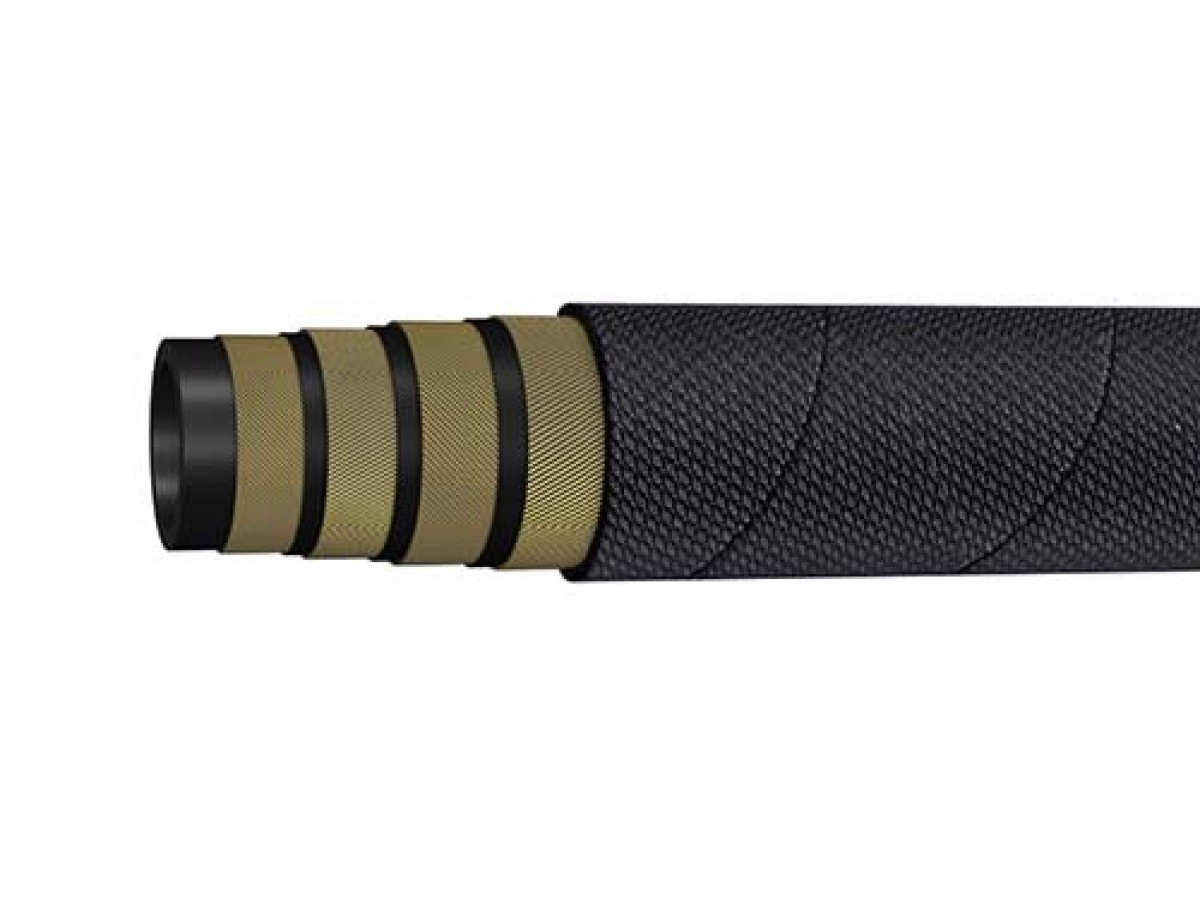

Construction :
Inner tube : Black colour, Synthetic rubber resistant to oil and water
Reinforcement : Four high tensile steel wire spirals
Cover : Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone
Application : Medium pressure Hydraulic Lines 165 to 450 bar and hydrostatic transmission lines for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Earthmoving & Material handling equipment and machineries/systems
| Item Code |
Dash Size |
DN |
 ID
|
 RI OD
|
OD
|
 WP
|
 BP
|
 BR/r
|
 W
|
||||||
| inch | mm | inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | kg/m | |||
| PH277-04 | -04 | 06 | 1/4 | 6.6 | 0.58 | 14.7 | 0.70 | 17.9 | 6525 | 450 | 26100 | 1800 | 5.91 | 150 | 0.627 |
| PH277-06 | -06 | 10 | 3/8 | 9.7 | 0.69 | 17.5 | 0.84 | 21.4 | 6455 | 445 | 25810 | 1780 | 7.09 | 180 | 0.822 |
| PH277-08 | -08 | 12 | 1/2 | 13.0 | 0.80 | 20.4 | 0.97 | 24.6 | 6020 | 415 | 24070 | 1660 | 9.06 | 230 | 0.994 |
| PH277-10 | -10 | 16 | 5/8 | 16.2 | 0.94 | 23.8 | 1.11 | 28.2 | 5075 | 350 | 20300 | 1400 | 9.84 | 250 | 1.222 |
| PH277-12 | -12 | 19 | 3/4 | 19.3 | 1.12 | 28.4 | 1.27 | 32.2 | 5510 | 380 | 22040 | 1520 | 11.81 | 300 | 1.605 |
| PH277-16 | -16 | 25 | 1 | 25.9 | 1.40 | 35.5 | 1.56 | 39.7 | 4640 | 320 | 18560 | 1280 | 13.39 | 340 | 2.277 |
| PH277-20 | -20 | 31 | 1.1/4 | 32.4 | 1.81 | 46.0 | 2.00 | 50.8 | 3045 | 210 | 12180 | 840 | 18.11 | 460 | 3.368 |
| PH277-24 | -24 | 38 | 1.1/2 | 38.6 | 2.06 | 52.4 | 2.25 | 57.2 | 2685 | 185 | 10730 | 740 | 22.05 | 560 | 3.911 |
| PH277-32 | -32 | 51 | 2 | 51.3 | 2.57 | 65.3 | 2.75 | 69.8 | 2395 | 165 | 9570 | 660 | 25.98 | 660 | 5.185 |
Temperature Range : Continuous: -40°C to +100°C
Intermittent : +120°C
Impulse Cycles : 400,000 cycles
Applications
- Industrial Hydraulic Systems
- Automotive Applications
- Hydraulic Fluid Transfer
FAQ
What materials are used in the construction of the hose?
What is the pressure range for this hose?
What applications is this hose suitable for?
HIGH PRESSURE SPIRAL HOSE - GT277 - 4SP
- Brand: GTeek
- Product Code: 277 - 4SP
- Availability: In Stock
