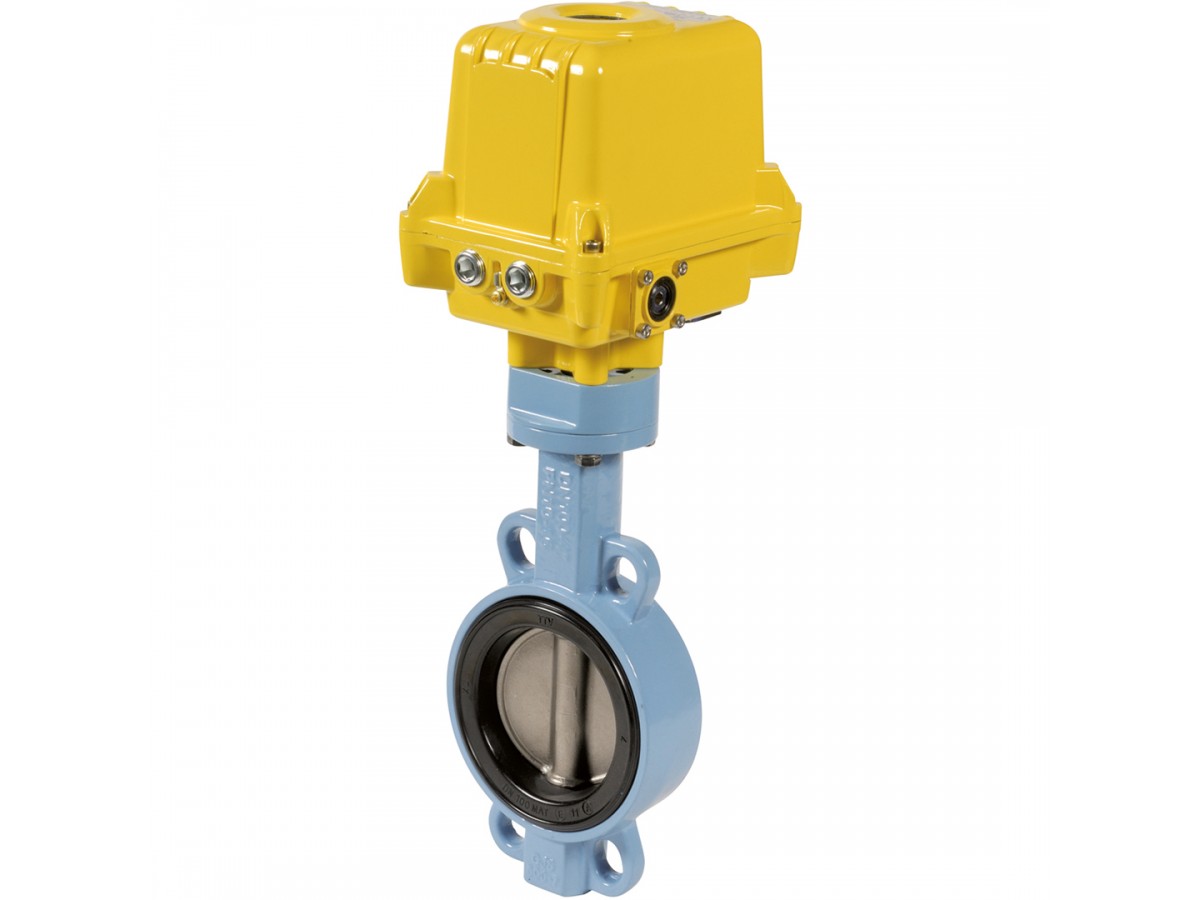

Ductile iron butterfly valve 1141 DN150 + NA15X 230V AC
The TTV 1141 butterfly valve has a ductile iron body, a stainless steel disc and an NBR seat. It is actuated with an ATEX electric actuator. NF GAZ approval.| Option certificate 3.1 | Yes |
|---|---|
| Maximum delta P (bar) | 10 |
| ATEX atmosphere | IIB |
| Shaft/stem matérial | Stainless steel 420 |
| Manual override | By handwheel |
| Declutchable | Yes |
| DN | 150 |
| Duty service | S2 duty service - 70% |
| Face to Face (mm) | 56.0 |
| Protection class (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Seat | NBR - Gas |
| Body material | Ductile iron |
| ATEX protection mode | EEx d |
| Number of ways | 2 |
| Disc material | Ductile iron with epoxy coating |
| PS (bar) | 5 |
| Power (W) | 40 |
| Connections | Between flanges PN10/16 #150 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | NAX 15 |
| Electric actuator series | SA-X/NA-X ATEX series |
| Operating time (s) | 20.0 |
| Surface temperature | T4 |
| Voltage | 230 V AC |
| TS max (°C) | 60 |
| TS min (°C) | -10 |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| ATEX zone | 1. 2 |
| Warranty period | 1 year |
| CE | Risk category III |
| Electrical connection | By gland packing ATEX |
| Fire safe | No |
Applications
- Industrial Processes
- Chemical Handling
- HVAC Systems
FAQ
What material is the valve body made of?
What is the maximum delta P for this valve?
Does the valve have a manual override feature?
