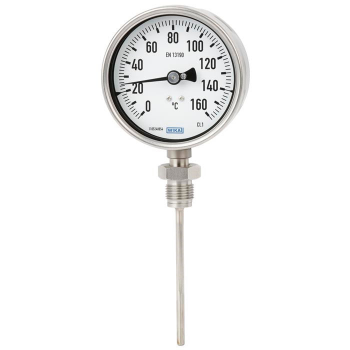

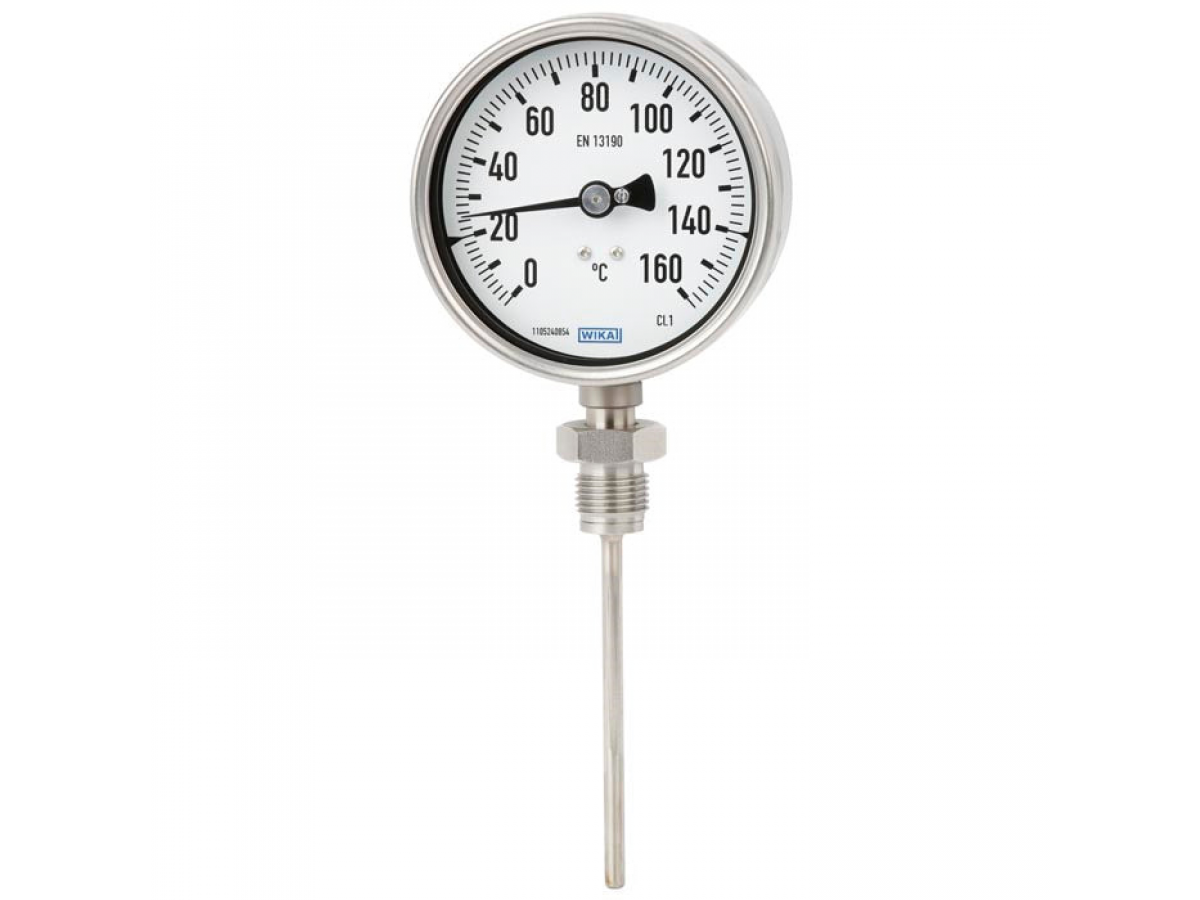

This completely stainless steel bimetallic thermometer with a bottom connection is ideal for use in the chemical and petrochemical industries, oil and gas fields, and other hard and hostile settings. It can monitor temperatures from +10 to +90°C and tolerate ambient temperatures ranging from -40 to +70°C. The thermometer features a 100 mm broad cabinet and a 200 mm long, 8 mm wide stainless steel stem with a bimetallic coil.

Mount the thermometer using a female G 1/2 inch thread, or combine it with a thermowell and mount. The stainless steel construction allows for operation at a maximum pressure of 25 bar (363 psi). The thermometer has a tolerance class of 1 according to EN 13190. It has an IP65 rating of protection.



Pros:

• Accuracy class 1 in accordance with EN 13190
• Simple and low maintenance design
• Not prone to malfuntion due to the mechanical design
• Suitable for a maximum pressure of up to 25 bar (362 psi)
• IP65 degree of protection.

Cons:

• Not equipped with a thermowell

55 series

The 55 series of fully stainless steel bimetallic thermometers are designed for temperature indication in chemical and petrochemical industries, oil and gas industries and in various harsh and aggressive environments. Scale ranges from -70 to 600°C and these thermometers can be used in ambient temperatures ranging from -40 to 70°C. Display width ranges from 63 to 200 mm while stem length ranges from 63 to 200 mm. The stainless steel design makes them suitable for a maximum operating pressure of up to 25 bar (363 psi). These thermometers are manufactured to a tolerance class 1 in accordance with EN 13190.
