Cooling Tower Panels
Cooling tower panels need to be resistant to water, chemicals and high temperatures to adapt to various environmental conditions in different industrial applications. Choosing the right material for the cooling tower shell can provide it with a stable and reliable operating environment. Many open and closed cooling tower manufacturers choose FRP foam sandwich panels.

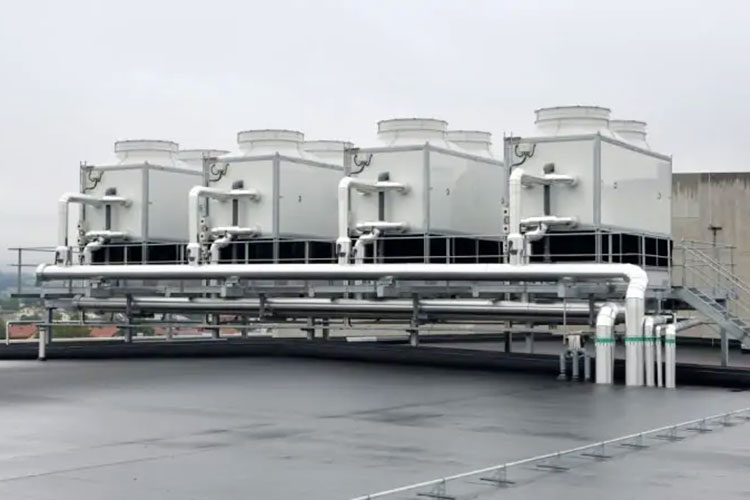

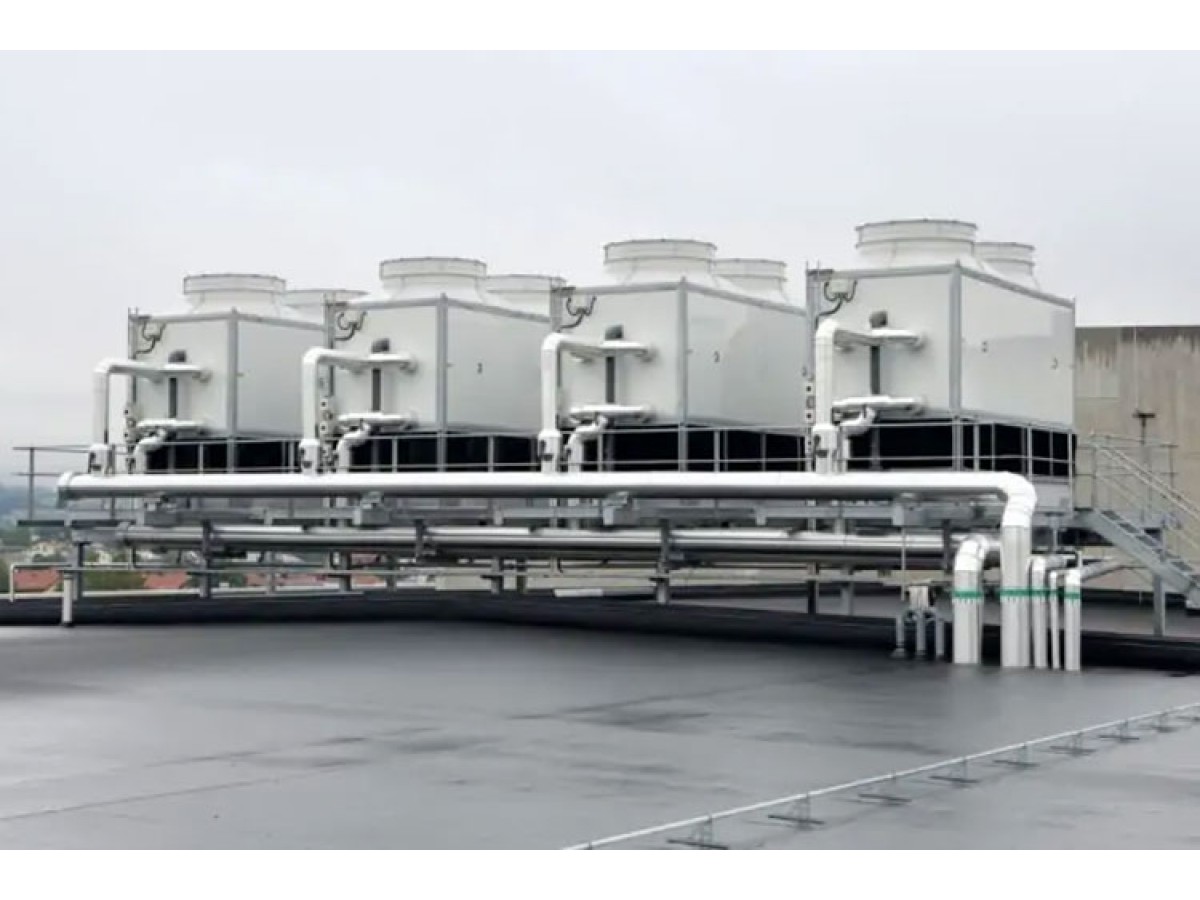

Application of FRP sandwich panels in cooling towers

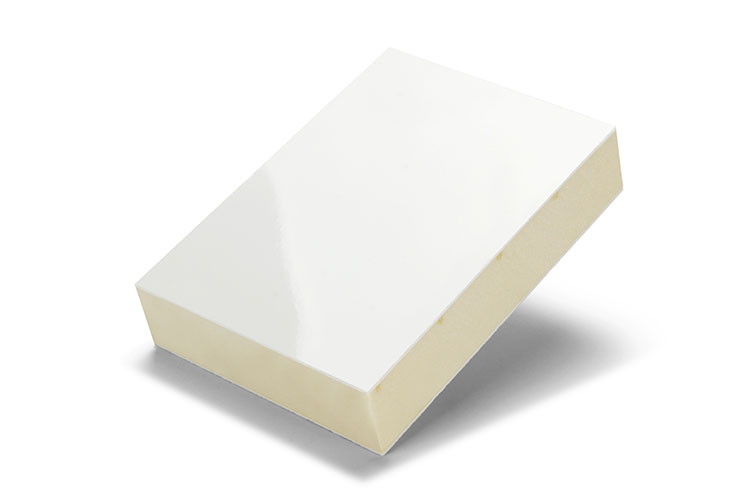

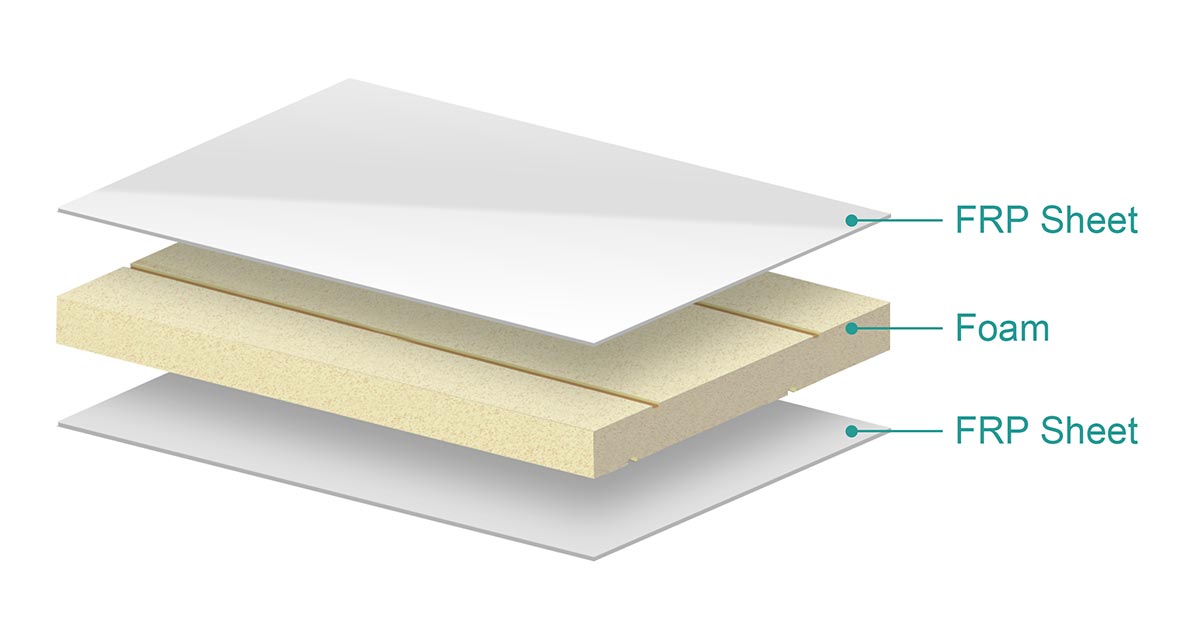

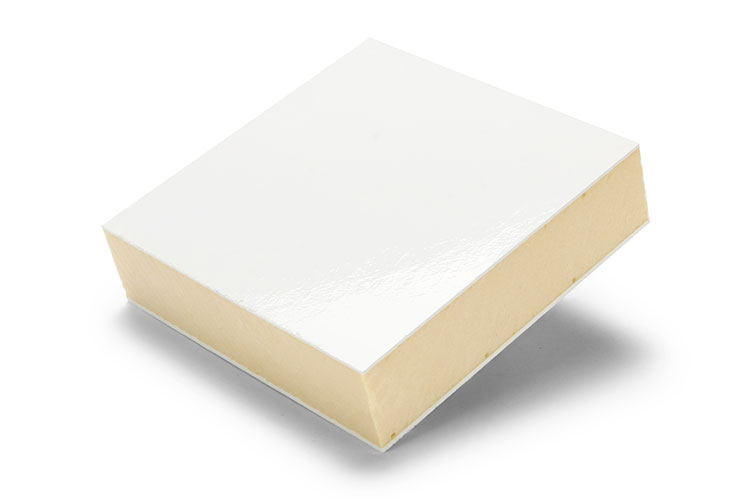

FRP foam sandwich panels are composed of FRP (fiberglass reinforced plastic) skin and closed-cell insulation foam
(XPS/Extruded polystyrene or PU/Polyurethane) core material. It is a material with a smooth surface, corrosion resistance and beautiful appearance. It has many significant benefits for enterprises when used as cooling tower panels.
-
Sealing performance: FRP foam insulation panels have excellent sealing properties, providing a completely enclosed space for the cooling tower to prevent exhaust gas leakage.
-
Thermal insulation performance：The excellent thermal insulation performance of FRP foam insulation panels ensures that the temperature inside the tower is in a stable range, ensuring the long-term and stable operation of the internal equipment.
-
Corrosion resistance performance：Antibacterial FRP panels are resistant to water and chemicals, can effectively prevent the growth of bacteria, are not affected by weather, and are easy to clean and maintain.
-
Aesthetic performance: FRP panels are more eye-catching than other materials and can keep the cooling tower in a new state for a long time.
Specifications
| Item | Skin | Core | Thickness |
|---|---|---|---|
| XPS Foam Sandwich Panels | Gelcoat FRP (Thickness: 0.7~5.0mm) |
Extruded polystyrene foam (Density: 35~50kg/m³) |
10~150mm |
| PU Foam Sandwich Panels | Gelcoat FRP (Thickness: 0.7~5.0mm) |
Polyurethane foam (Density: 28~50kg/m³) |
10~150mm |
What can we do for your cooling tower project?
- Customization：Customized services and standardized production.
- Modular：Modular housing for quick assembly.
- Accessories Service：Parts support, providing brackets, metal parts and other accessories for installation.
Aplicaciones
- Industria
- Automotriz
- Marino
Preguntas Frecuentes
¿Qué son los paneles de torres de enfriamiento?
¿Cómo se instalan los paneles?
¿Qué mantenimiento requieren?
Paneles de Torre de Enfriamiento
- Marca: GTeek
- Referencia: Cooling Tower Panels
- Disponibilidad: En Stock
